Motors

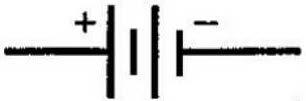

Batteries

Batteries supply the power to run the electric truck. Their voltage depends on the number of individual cells they contain. There are approximately 2.2 volts for each cell in the commonly used lead-acid type battery. Industrial batteries normally range from 6 volts to 48 volts, depending on their application. The construction, function, and maintenance of batteries is explained fully in the "Batteries and Chargers" class.

Connectors ----c:((

The connector symbol indicates a connection, or plug, between two or more wires or cables. The symbol below is for a control card connector. (Control cards are explained in Section 2.) This kind of connector consists of a plug that forms multiple control connections to the control card.

OSCCARD CONNECTOR
