Handle in cab

Opening/closing the rear window

A Danger!

In order to avoid crushing and injury, close the rear window when driving the machine!

Lock the rear window with the lock lever

Remove the lock lever from the guide only in case of an emergency

Opening the rear window

•Unlock lock lever A in the direction of the arrow •Open the rear window • Engage lock A in the end of lever B with an audible click (arrow)

Closing the open rear window

•Lock the rear window in the reverse order

B

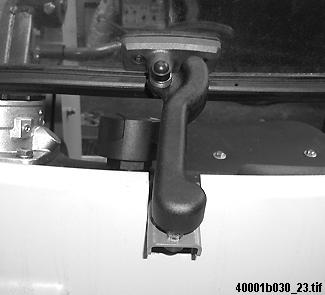

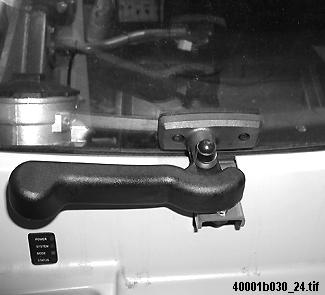

Fig. 47: Rear window lock

Interior light operation (cab)

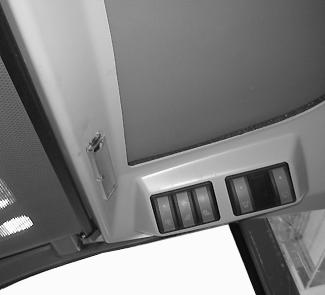

Fig. 48: Switch for interior light The interior light is switched on via a contact switch when opening the door.

Switch the light on/off permanently •See the switch on the interior light
