ENTERING THE CAB

The door consists of independently hinged upper and lower sections, which allow the operator to drive with the lower section closed, whilst the upper section can either be fully opened and locked against the cab frame, or secured in ajar position.

To enter, unlock and press the lock barrel.

To open the door from inside the cab: Depress handle (A)

Do not drive the machine with lower door open.

The upper door section can only be opened from the inside by depressing handle (B).

It may be swung fully open and secured against the cab exterior by catch (C) or secured in ajar position by swinging lever (E) and locating it in lower door section at (F).

To release when secured fully open, swing lever at (C) as shown, or from inside, move lever (D) sideways

To release from ajar position depress lever (B).

Do not drive with the upper door section unsecured.

EMERGENCY EXIT

Emergency exit hammer

In the event of an emergency a pane of glass can be smashed using the emergency exit hammer (1) provided.

Fire extinguisher

If your machine is fitted with a fire extinguisher, ensure it is regularly checked by a suitably qualified person. Do not remove it from the cab until it is needed.

Using the fire extinguisher

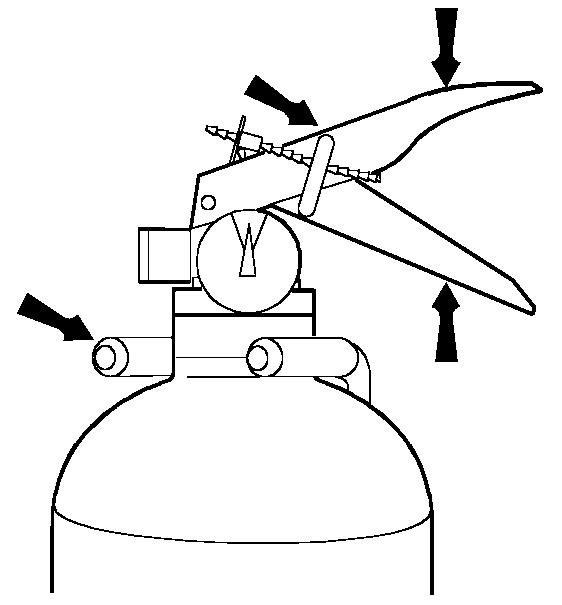

1 Remove extinguisher from stowage bracket (A). 2 Hold extinguisher upright, pull out safety pin (B). 3 Aim nozzle at base of fire. 4 Squeeze handles (C) to operate the extinguisher, release handles to stop flow. After use, the extinguisher should be replaced or serviced.
