Side position lights in case of excess width .................. 6.3

4

5

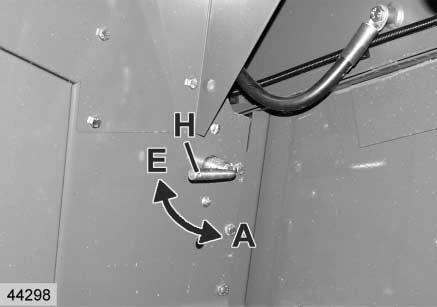

6 Battery master switch

The overall power supply to the machine can be isolated with the battery isolating switch (H). E = ON (switch on by turning clockwise) A = OFF (switch off by turning counter-clockwise) Turn the battery master switch off in emergencies and every day when the works is finished.

ATTENTION!

Never turn the battery isolating switch off when the engine is running.

(Fig.4)

Wheel chocks

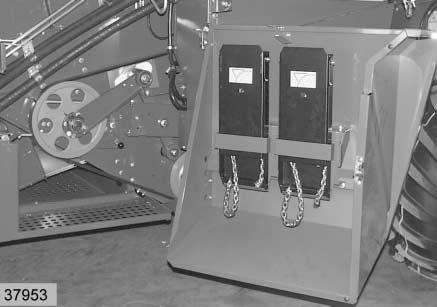

(Not for all countries) The combine is equipped with two wheel chocks from the factory. The brackets holding the wheel chocks are located on the left-hand machine side behind the fan guard. The wheel chocks must be carried on the machine at all times. When leaving the combine on uneven ground, both wheel chocks must always be placed under the traction wheels. (Fig.5)

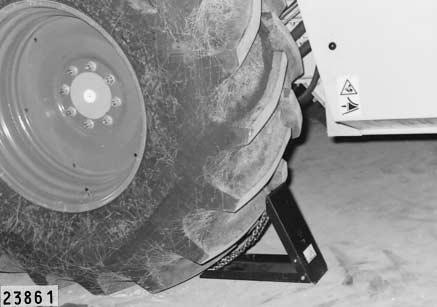

Positioning the wheel chocks

Always place the wheel chocks in front of or behind the front traction wheels (depending on the slope of the ground) on both sides of the combine. Always position the wheel chocks so that the combine cannot roll away. Completely open the wheel chocks and place as close to the traction wheels as possible. (Fig.6)
