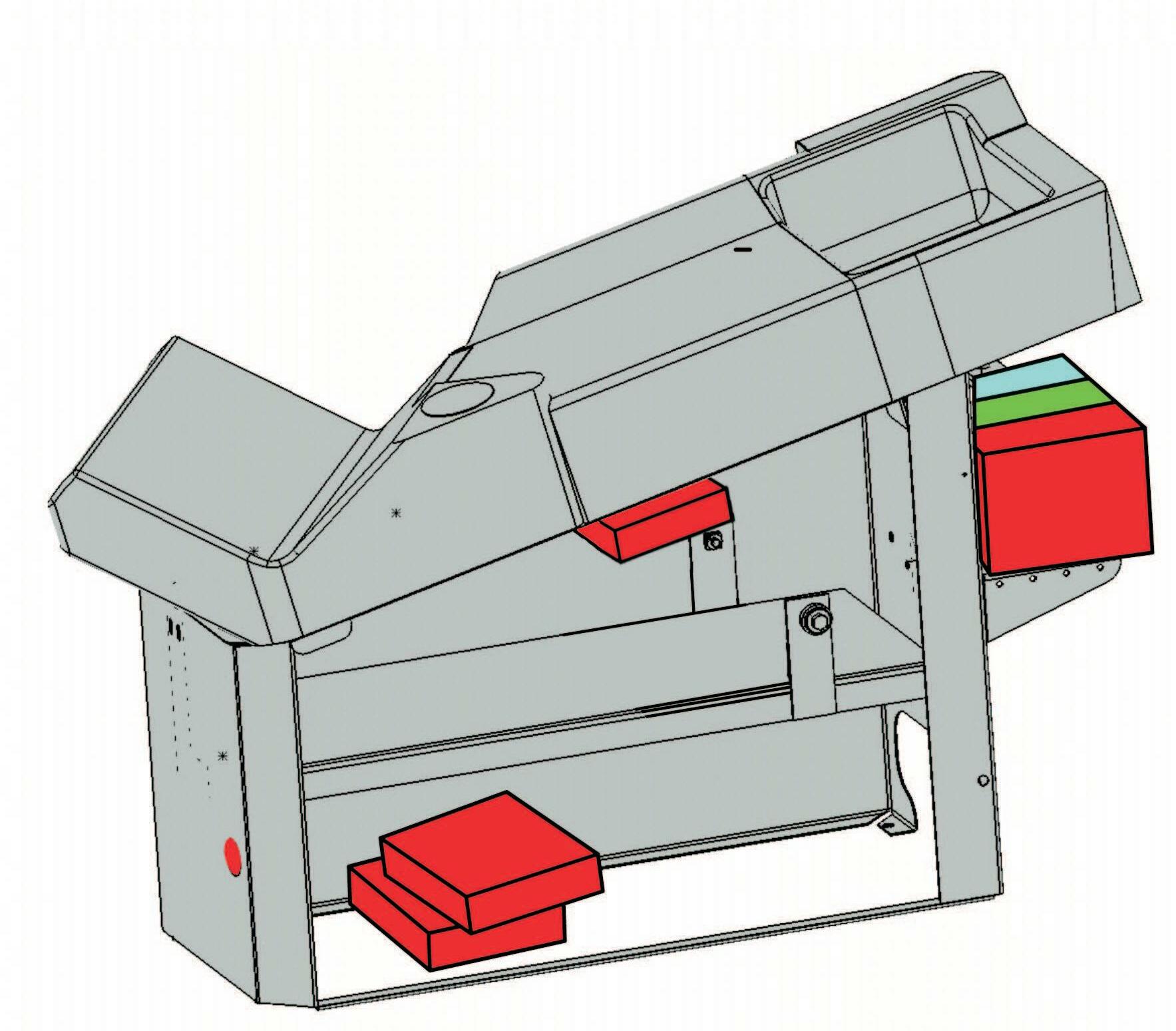

Module A24 - Sharpening / Shear bar adjustment (GGS)

Module A24 - Sharpening / Shear bar adjustment (GGS)

Pin Function CCN Component Circuit diagram Measuring variable Direction

13

1

401885 25 14

401590 A24

1 Sharpening unit Z53 Sharpening stone switch, right end position 9 12 V Output

2 Sharpening cover solenoid valve K6 Relay 9 12 V Output

3 Sharpening stone to the right solenoid valve Y62 Sharpening stone to the right solenoid coil 9 12 V Output

4 Electronics plus F55 Fuse 6, 9, 10 12 V Input 5 CAN high - - 6 1.9 ± 0.2 Volt eff

6 Knock signal, right-hand B37 Shear bar sensor, right 10 - Input 7 Motor pulses, right-hand M5 Shear bar adjustment motor 10 - Input

8 Sharpening stone end position right Z54 Sharpening cycle counter switch 9 Earth Input

9 Sharpening stone to the right solenoid valve Y62 Sharpening stone to the right solenoid coil 9 12 V Input

10 Right knock sensor earth B37 Shear bar sensor, right 10 Earth Input 11 Shear bar adjustment 1 motor M5 Shear bar adjustment motor 10 12 V Output

12 Shear bar adjustment 2 motor right M4 Shear bar adjustment motor left 10 12 V Output
