Set clearance height ............................................................... 6
1
2
3
67341
4
67219
5
CONTROL TERMINAL
13
14

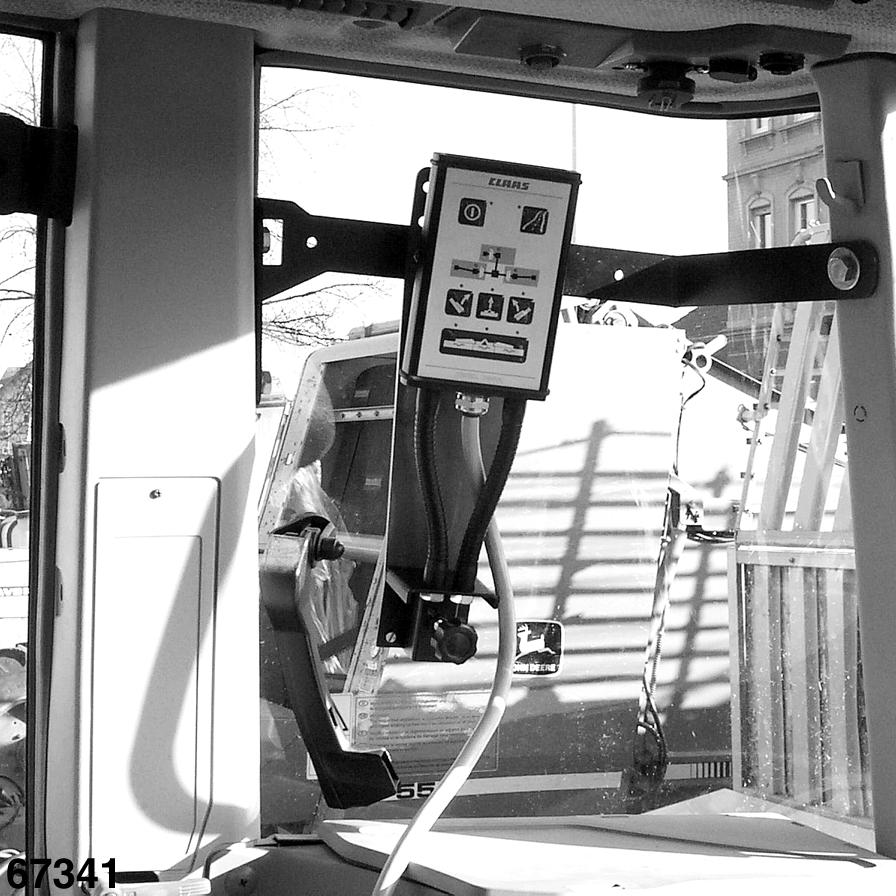

Fit bracket(2) within reach of driver. Screw control terminal bracket(3) to bracket(2) with set screws (M5x16) and self-locking nuts(VM5). Insert operating terminal(1) in operating terminal holder(3). (Fig.13)

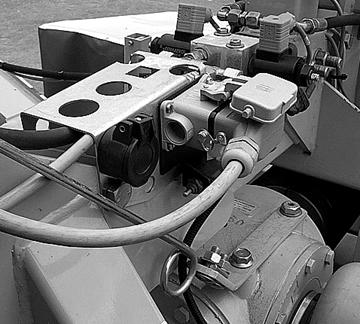

Insert plug(5) in socket(4). (Fig.14)
Plug the electrical connection cable into the socket on the tractor.
Connect the hydraulic hose to the connection of a single-acting control valve on the tractor.
Hold down this button on the operating terminal for 1.5 seconds.
position. (Fig.15) Push this button. The lamp lights up green. On tractor, set hydraulic controls for ejection cylinder to floating
When fitting for the first time, the weight of the side mower unit is not available to swing the arm downwards. For this reason, the arms must be pulled downwards.
