1 SAFETY DECALS WITH PICTORIALS

Safety decals are attached to the danger zones of the machine. These safety decals help to alert persons to hazards which can cause personal injury. The pictorials provide instructions to avoid the hazard. These safety signs, their placement on the machine and a brief explanatory text are shown on the following pages. The CLAAS part number of every decal is stated ahead of the text. The figure in ( ) refers to the adjacent picture and indicates the correct location of the decal on the machine. Safety decals that are damaged or cannot be recognized any more must be replaced immediately by new ones. When parts that have decals are replaced, always make sure to install the relevant new decals with each new part.

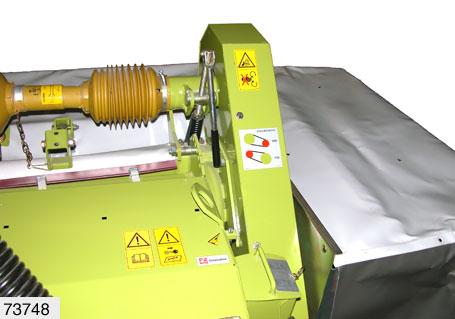

Warning symbol 514946.1 (1) Before putting the machine into operation, read the operator's manual and follow the safety precautions. (Fig.1,2)

1

2

3 3

Warning symbol 514895.1 (2) Before carrying out maintenance and repair work switch off engine and remove ignition key. (Fig.3,4)

4

5

Warning symbol 516039.0 (3) Do not open or remove the safety guard with the engine running. (Fig.5,6)

6
