Tine rotors
from CLAAS CARGOS 9600 9500 9400 DISCO 9300 C 9300 RC 9100 C AUTOSWATHER 8600 C Hydraulic connector C
5
5
6 10

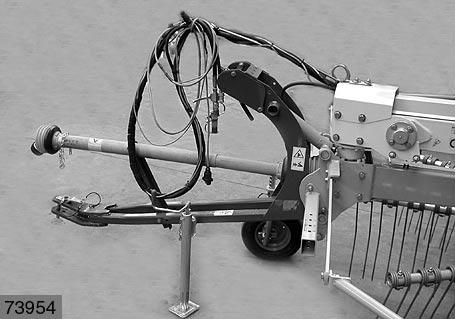

11 Warning symbol 0514876.1(5)
Stay clear while engine is running. (Fig.10,11,12)
12
6 13
14 15

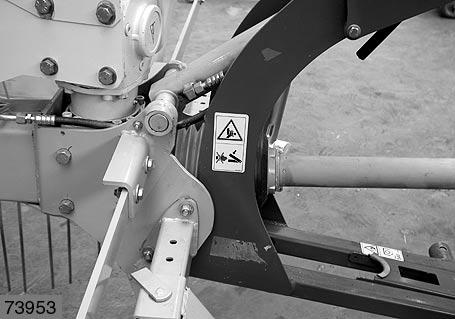

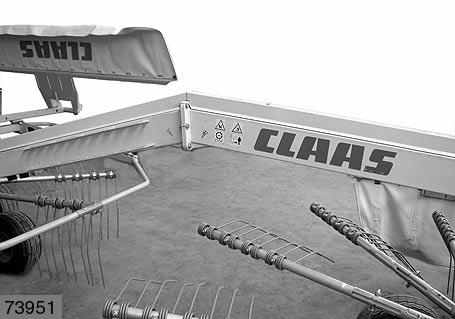

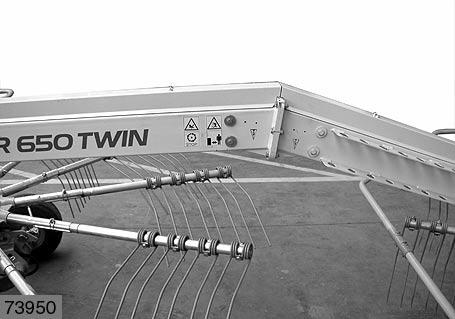

Warning symbol 0516038.0(6)
Never put hand inside zones that are marked as crushing hazard, as long as the parts can move. (Fig.13,14,15)
