connector X5

brake so that you do not inadvertently introduce dirt into the brake mechanism.

3.7.5.1. 1,000 and 1,200 kg capacity trucks

Check the wear of the brake pad and clean the brake. Perform the following procedure to service the brake.

1. Open the three screws that fix the brake to the drive unit.

Use a 7 mm wrench.

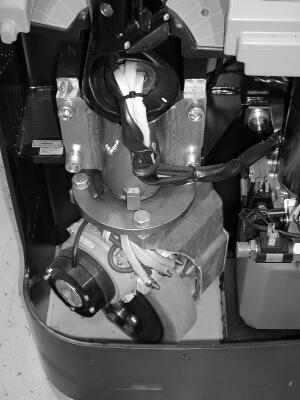

Figure 3.18. Brake fixing screws

2. Detach the brake unit carefully.

3. Detach the brake pad and measure its thickness.The thickness of a new brake pad is 7.6 mm. Replace the pad when it has worn to a thickness of under 7.4 mm.
