3.1 Adjustment Details

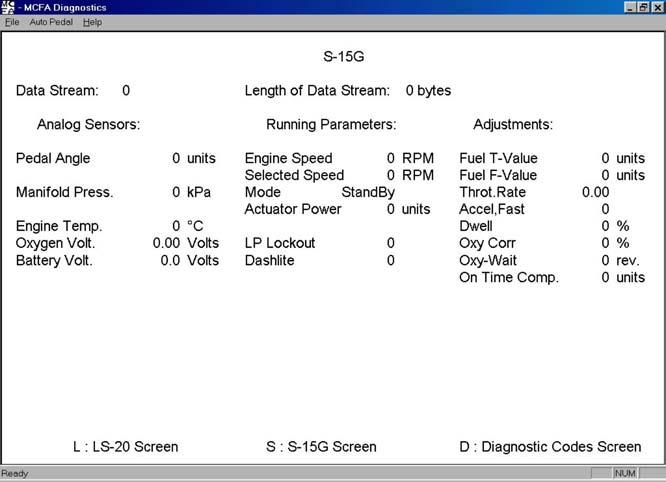

3. S-15G Screen Layout:

S-15G Screen

Data Stream: Must be scrolling if properly connected to ECU and key switch set to run position. If this value is not running (increasing in value) this indi cates the diagnostic cables are either not connected properly or no power is being supplied to the engine management system. Length of Data Stream: Typically 91 bytes

Analog Sensors:

Pedal Angle 0-255 Units (Typically range, 45-195 units) Manifold Press. 36-38 kPa at no load idle to 100 kPa at full load governed speed Engine Temp. Current value, in Deg C Oxygen Volt. Displays oxy sensor voltage normal range 0.10 - .85 volt(s) Battery Volt. Approximately 14.5v when charging

Running Parameters:

Engine Speed Current value Selected Speed Design speed for system based on pedal position Mode 0 Standby 1 Cranking 2 Idle 4 Normal 6 Over speed shutoff Actuator Power Throttle valve opening power 0-250 units LPLockout 0 off, 1 on Dashlight 0 off, 1 on (see "D" screen if 1 is displayed during running mode, check engine light should be displayed)
