Rope Reeving/Pintle Tightening

Operators Manual

BI010977

Rope Reeving/Pintle Tightening

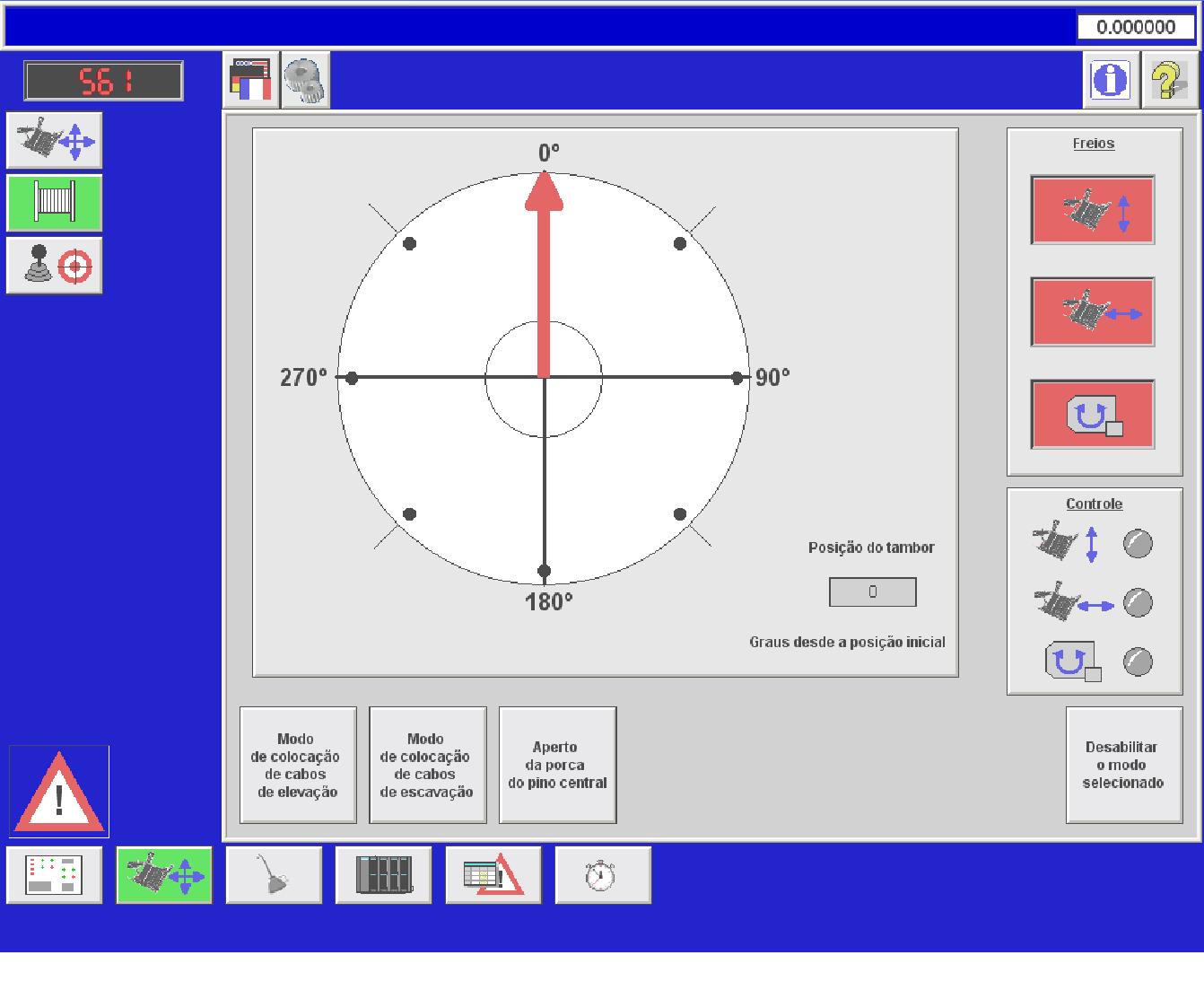

The Rope Reeving/Pintle tightening screen is selected in order to make adjustments to the center pintle or change any of the main machine wire ropes. This screen will become active in the pintle tightening mode. If rope reeving is the desired intent, a selection must be made at the buttons in the lower left of the display area.

NOTE: Before switching between different modes of operation the Disable Selected Mode button should be pressed.

Switches for the activation/release of the hoist, crowd and swing brakes are provided, along with condition indicators displayed below the brake switches. This screen assists in the correct wrapping of the ropes on drums and allows full control of drum movements.
