Safety rules – ROPS judgment

Purpose

Judge whether not the model is compliant with ROPS the ROPS criteria. Compliance with ROPS is highly dependent its deadweight and boom. The model has passed the ROPS test for its deadweight with all selectable options installed (as 2014). However , the judgment is required because its deadweight boom position may beyond the assumption depending derivative order conditions.

ROPS criteria

W eight

For each class, the following weight shall not exceeded. the weight is exceeded, a cab may become damaged in case a rollover , causing the operator die become severely disabled. is not applicable beyond the criterion.

The ROPS - compliant model shall not exceed the weight shown in the table. (The following weight is shown the decal in the ROPS cab.)

Gross body weight Class CX130D CX160D

20500 ( 45194.76 ) less

32000 ( 70547.92 ) less

40000 ( 88184.90 ) less CX180D CX210D CX250D CX300D CX350D CX370D

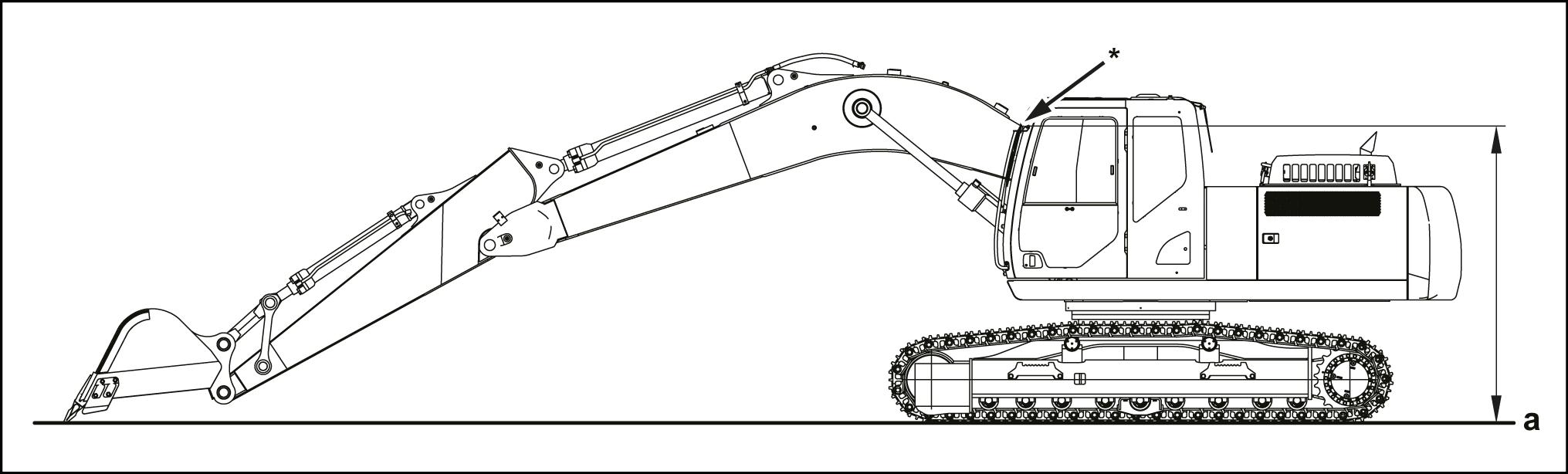

Boom position

W arning

• you make such modification lowers the boom position, ROPS is not applicable. • Consultation with is required whenever it is assumed that the boom position is lowered modification. • The range change in the boom position cannot determined uniformly .

SMIL14CEX2001EA 1 (a) Ground point
