Control valve

Pin plates

When ordering parts, obtaining information assistance, always supply your CASE CONSTRUCTION Dealer with the type and serial number your machine accessories.

W rite the following in the spaces below: the type, serial number and year manufacture your machine, accessories and the serial numbers the various hydraulic and mechanical components

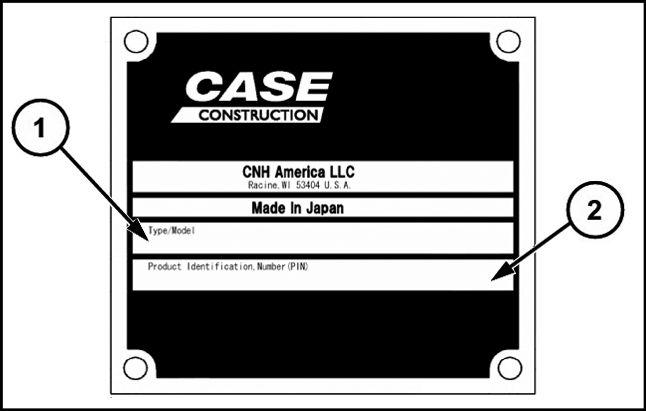

Machine (1) T ype / Model and Category: (Hydraulic Excavator) CX250C .

(2) Serial number:

QC3CE6 - 003N 3

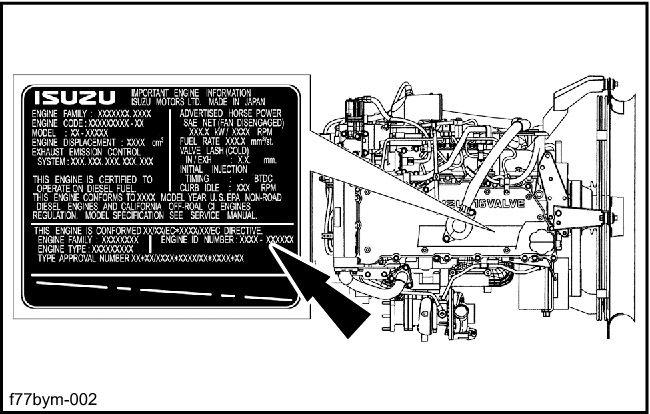

Engine Make and type: ISUZU - 4HK1X

Serial number: A TTENTION: The engine and fuel system your machine is designed and built government emissions standards. T ampering dealers, customers, operators and users is STRICTL Y PROHIBITED BY W. Failure comply could result in government fines, rework charges, invalid warranty , legal action and possible confiscation the machine until rework original condition is completed. Engine service and / repairs must done a certified technician only .

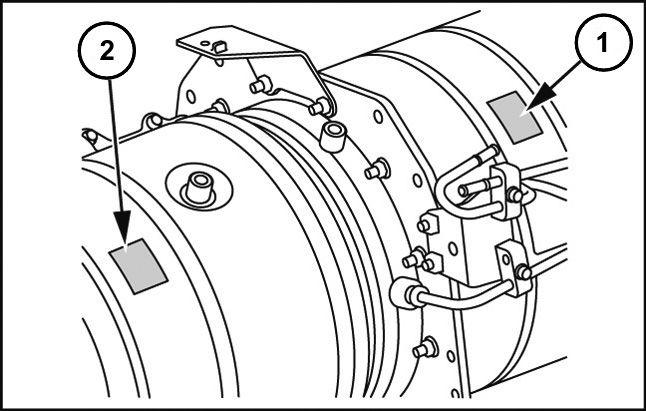

Diesel Particulate Dif fuser (DPD) (1) Catalyzed soot filter serial number: Filter which has the function purify exhaust gas with oxidation catalyst.

(2) Diesel oxidation catalyst serial number: Oxidation catalyst for diesel machine.

F77BYM - 002A 4

DPD00001A 5
