Cab / Operator's compartment

Using implement other than a bucket

• When using a special implement (hydraulic breaker , cutter crusher etc.), refer the operator's manual provided with the implement.

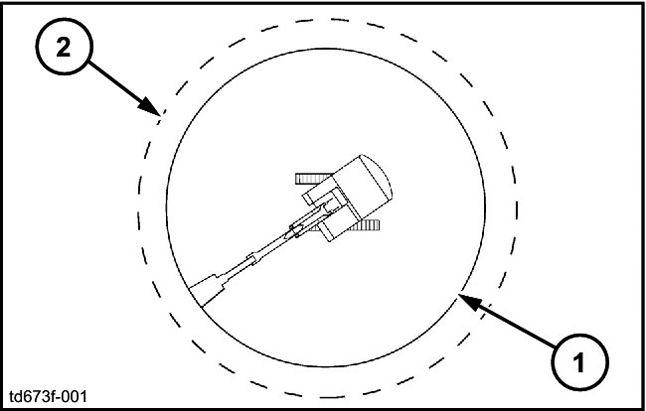

Safety area

The safety area is the space necessary for the machine operate the maximum range the tool and full swing 360 ° plus 2 m.

(1) W orking area.

(2) Safety area.

Implement operation and maintenance

• For the implement operation and maintenance, refer the operator's manual provided with the implement.

TD673F - 001 2
