PARKING THE MACHINE

STEP 1

1.Place the machine on flat, level ground, away from soft ground excavations and badly shored cavities.

STEP 2

2.Place the upperstructure frame in line with the undercarriage, retract the attachment and dig the bucket into the ground to anchor it.

STEP 3 STEP 5

If necessary, activate the anti-theft device. See “Anti-theft Device” in this manual.

STEP 6

CD00E010 Use the upperstructure swing locking switch on the systems display and control panel and make sure the locking indicator lamp lights up on the display panel.

STEP 4

CD00E060 Turn the engine throttle button to low idle position and let the engine run for approximately five minutes.

CD00E080 Stop the engine and remove the starter switch key.

STEP 7 STEP 8

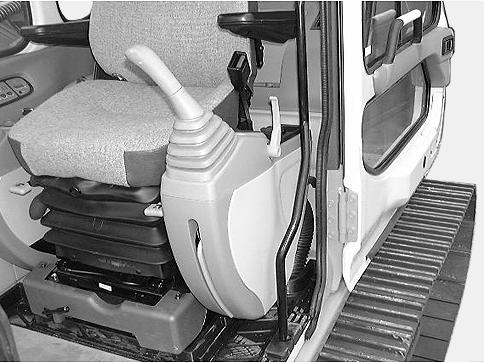

CD00E005 Raise the function cancellation lever (safety bar in inward position).

WARNING: Never jump down from the machine. When leaving from the operator’s compartment, or from the upperstructure, always face the machine and use the steps and access handles.

CD00E002 Lock the operator’s compartment door and make sure that the hoods, lower panels and side doors are properly fastened. IMPORTANT: Check that the no part of the machine is encroaching on the highway. If this cannot be avoided, set up approved traffic signs and markers.

TOWING THE MACHINE

Before attempting to tow the machine, consult your CASE Dealer. Wherever possible, carry out any repairs at the site.

WARNING: Towing is a delicate maneuver which is always carried out at the risk of the user. The manufacturer’s warranty does not apply to incidents or accidents which occur during towing. Where possible, carry out the repairs at the site.

WARNING: The machine must be towed very slowly, over a short distance and only if it is really unavoidable.

WARNING: The operator must be the only person on the machine when towing. Make sure that nobody else is on the machine or within its working range.

LOWERING THE ATTACHMENT IN THE EVENT OF MACHINE FAILURE

If the engine breaks down, use the following procedure to lower the attachment.

STEP1 STEP 3

CD00E060 Turn the starter switch key to the “ON” position.

STEP2

CD00E111 Place the control lever (s) in the position corresponding to the downward movement required.

CD00E006 Lower the function cancellation lever (safety bar in outward position).
