STEPS AND ACCESS HANDLES

1 2

1

2 2

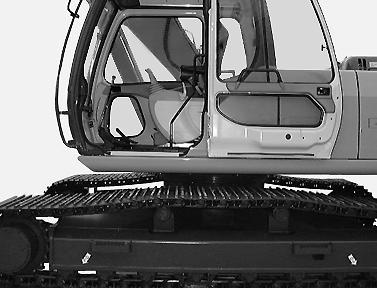

CD00E081 CD00E083 To get on or off of the machine use the steps (2) and access handles (1).

WARNING: Always maintain three point support while getting on and off the machine and entering or exiting the operator’s cab. A three point support system has been provided that enables a person to use simultaneously two hands and one foot or two feet and one hand while ascending, descending or moving about the machine.

WARNING: When getting in or out of the cab, it is imperative that the upperstructure frame is in line with the undercarriage.

WARNING: Never jump down from the machine. When leaving the machine or the upperstructure, always face the machine and use the steps and access handles.

WARNING: To get in or out of the cab, never use the left-hand control lever, the left-hand control arm or the door handle.

BD00M479

Always maintain three point support getting on and off the machine.

WARNING: Clean the steps and access handles and remove all traces of grease, oil, mud, and (in winter) ice.

FUNCTION CANCELLATION LEVER AND SAFETY BAR

2

1

WARNING: Before leaving the operator’s compartment, it is mandatory for the function cancellation lever (2) to be raised and the safety bar (1) to be in the stowed position.

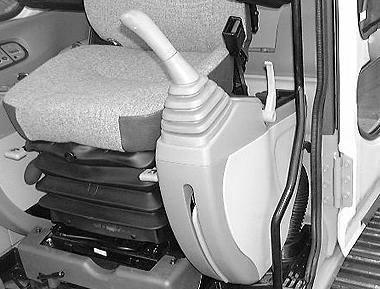

CD00E005 The safety bar (1) is designed to discourage the operator from leaving the operator’s compartment without first having lowered the bar. The lever (2) operates the safety bar (1) and cancels the functioning of the control levers and pedals. When the lever (2) is in raised position, the safety bar (1) is in retracted position in the control arm and the attachment, travel and swing functions will not operate. 1 2

CD00E006 To make the attachment, travel and swing functions operational once more, lower the lever (2) for the safety bar (1) to come out of the control arm.

1 2 1 2

BD00M480 BD00M481 NOTE: It is also possible to cancel all controls by completely raising the lefthand control arm. See “Left-hand control lever” .
