DECALS

WARNING: Make sure that the decals are perfectly legible, clean them regularly and replace decals that are destroyed, lost, painted over or no longer legible. When parts bearing decals are replaced, be sure to put new decals on each new part.

KHP1525

When you clean the decals, use only a cloth, water and soap. Do not use solvents, gasoline, etc. This chapter only covers decals relating to safety and machine operation and servicing. For information on all decals on the machine, consult your Case Parts Manual. New decals can be obtained from your Case dealer. The part numbers are shown at the bottom of each decal.

KHP1537-00 This decal draws attention to the fact that, in certain positions, there can be interference between the attachment tool and the operator’s compartment.

CS96D164 This decal advises to engage the function cancellation lever when leaving the cab for any reason.

CS00F530 This decal shows the function of the lefthand and right-hand control levers. See “Left-hand control lever” and “Right-hand control lever” in the “Controls/ Instruments/Accessories” Section.

STANDARD PEDALS

KHP1498-00

161468A1

STANDARD AND SINGLE PEDAL TRAVEL These decals show the function of the travel control levers and pedals.

1

1

BD00M216 This decal instructs the operator to use diesel fuel only.

KHP1013-00

2 2

P9290026 / KHP1525-00

3

3

KHP1542-00 This decal advises that before removing the hydraulic tank cap the pressure should be relieved. See “Releasing pressure” in the Hydraulic system.

KHP1543-00 This decal advises the operator to use the transportation link (stay) when transporting or servicing the machine.

4

4

P9290008

This decal warns of the hazard associated with rotating parts and components.

5

KHP1533-00

P9290006

This decal warns of hazards associated with removing the radiator cap before relieving the pressure. See the “Cooling System ” section of this manual.

5

6 6

P9290010 / KHP1525-00 This decal warns that some surfaces associated with the engine compartment may be hot to the touch and cause burns.

7

7

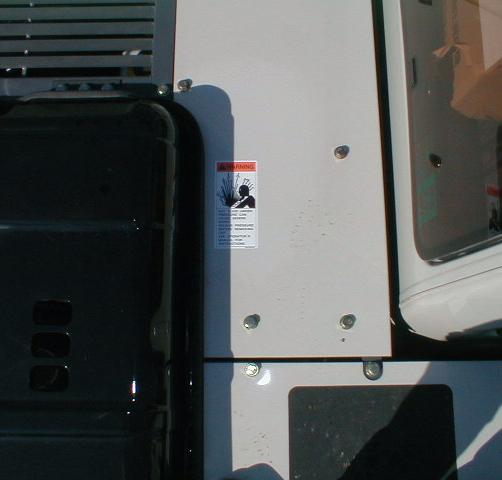

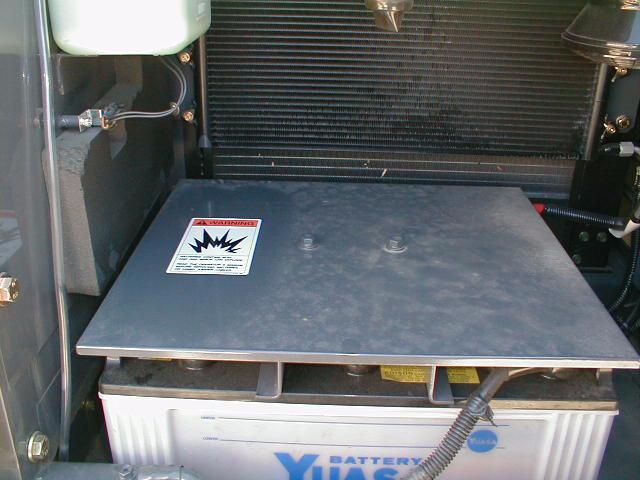

KHP1536-00 / P9290014 This decal warns of the hazards that may be encountered when servicing the batteries and using jumper cables.

BS00M141

This decal warns of Danger and to keep clear of swinging upperstructure to prevent serious bodily injury.

BSOOM134

This decal Warns the operator that grease may be under Heavy spring pressure. Pressure should be released before disassembly.

8 8

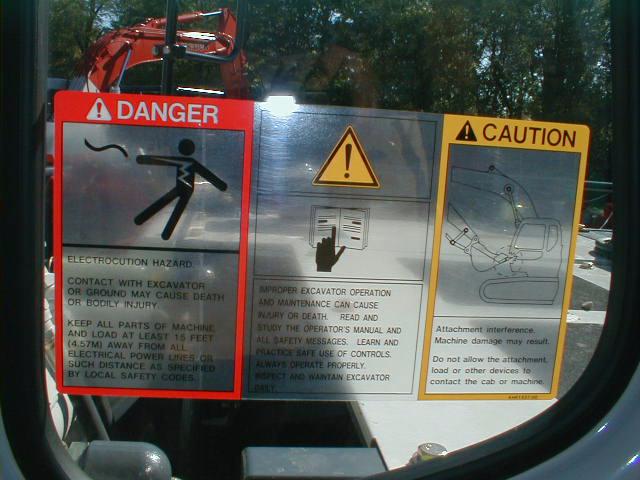

P9290026 / KHP1525-03 This decal warns of Electrocution Hazard and is located inside the cab on the right rear window.

KHP1015-00

This decal reminds the operator proper procedures for checking the Hydraulic Oil Level.

KHP1010-00

This decal warns the operator to engage the hood lock.

This decal warns the operator of slippery surfaces.

KHP1011-00

1P2240 This decal warns of the Danger if standing too close to a machine that becomes electrified.

This decal is located on the back glass inside the operator KHP1360-00’s cab. It shows the operator procedures for an emergency exit.

KHP1538-00 This decal cautions the operator to lock the front window after removing or replacing in order to ensure that it will remain in a safe position.
