FUEL TANK

CD00E034

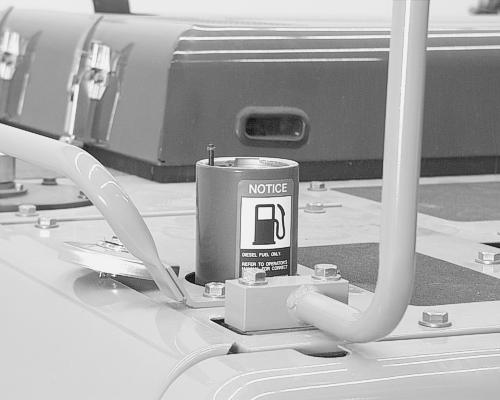

The fuel tank capacity is 340 litres (89.8 gal). When installing the fuel cap, make sure that it is correctly placed in the notches and then lock it by turning it against the stop.

BD00M217

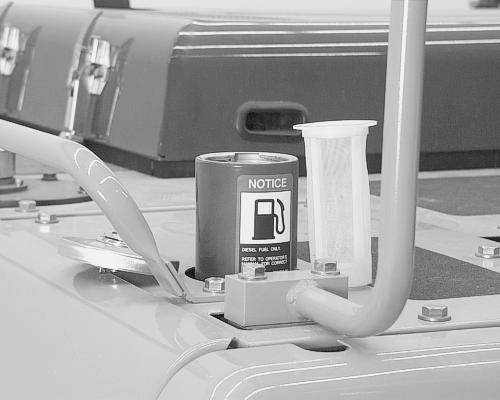

As fuel approaches the top of the neck a float will warn the operator to reduce “overflow” . IMPORTANT: In cold weather, fill the fuel tank after each working day to prevent the formation of condensation. NOTE: Clean around the fuel cap before refueling and do not remove the filter located in the filler orfice.

WARNING: Never refill the fuel tank when the engine is running. Never smoke during refueling.

IMPORTANT: Use the starter switch key to lock the fuel cap.

BD00M218 NOTE: In cold weather, use fuel corresponding to the ambient temperature. See “Fluids and lubricants” in the “Lubrication/Filters/ Fluids” Section.
