WINDSHIELD

WARNING: Make sure you follow the instructions below properly. If the windshield is not handled correctly it could slip and injure your fingers or hand.

OPENING STEP 1 STEP 3

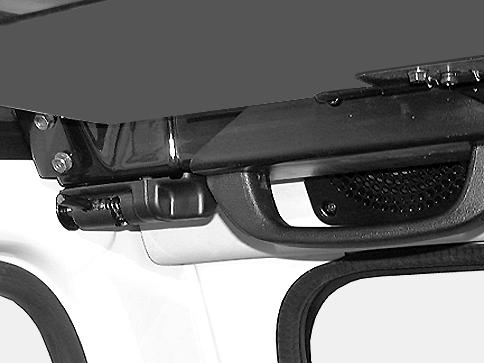

CD00E023 Fold back the sunshield against the windshield and pull the lever.

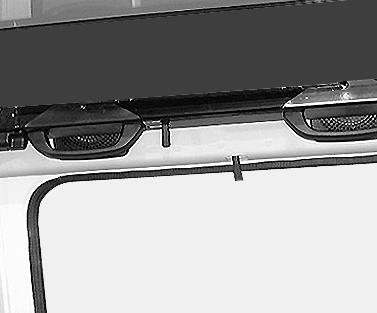

CD00E047 Engage the right-hand latch in the cab upright.

STEP 2

CD00E047

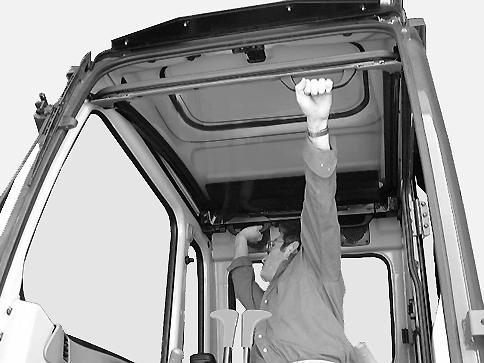

Hold the lower and upper handles and carefully raise the windshield. Push to the rear until it engages.

CLOSING STEP 1 STEP 3

Release the right-hand latch.

STEP 2

CD00E019 CD00E047 Hold both handles and carefully lower the windshield. Make sure the window is completely down.

STEP 4

CD00E020

Use the lever to release the windshield.

CD00E023 Make sure the top of the windshield is correctly latched.
