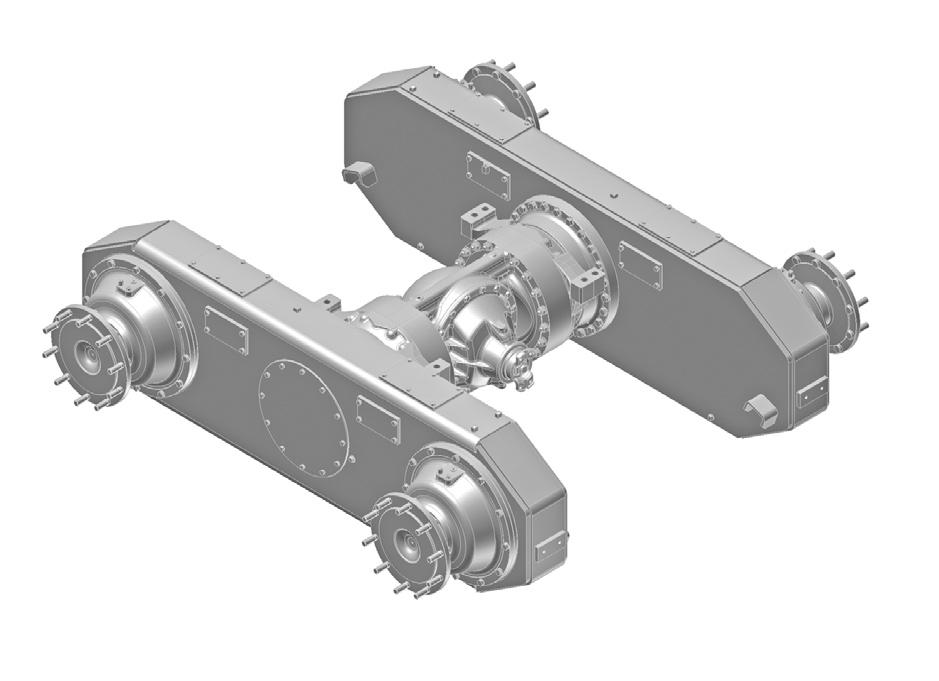

TANDEM

Service Specifications

Tandem Drive Case Refill Capacity (each side) ........................................................................ 69,0 liters (18.2 US gal) Type of oil ............................................................................................................................ See “Fluids and Lubricants” Oil check interval .................................................................................................................................... each 500 hours Oil change interval ................................................................................................................................ each 1000 hours

Tandem Drive Case Oil Level Check

Park grader on a level surface. Remove level plug (3) from each tandem case. The oil must be level with the oil level plug hole. Add oil until it is brought to the proper level. Install all plugs.

Tandem Drive Case Oil Change

Change oil each 1000 hours

Remove the drain plug (2) from each case and drain the oil. Remove the level (3) and filler plugs (1) from each case. Install the drain plugs. Add specified oil through the filler holes until oil runs out of the oil level hole. Install and tighten level plugs and filler plugs in each case.

ATTeNTION: Dispose used oil in specialized recycling stations.

845b MODeLs

2 4

1

1

1. FILLER PLUG 2. DRAIN PLUG 3. LEVEL PLUG 4. BREATHER

3 2 865b AND 885b MODeLs

2 4

1

1

1. FILLER PLUG 2. DRAIN PLUG 3. LEVEL PLUG 4. BREATHER

3 2
