REAR AXLE

Service Specifications

Rear Axle “Housing Center” (Graziano) 845B Models ........................................................................................................................ 40,0 liters (10.5 US gal) 865B and 885B Models ...................................................................................................... 44,0 liters (11.6 US gal) Type of oil ............................................................................................................................ See “Fluids and Lubricants” Oil change interval .............................................................................................................................. Every 2000 hours

NOTe: DO NOT use an alternate oil in the axles. The brake components in the axles could be damaged as a result of using an alternate oil.

845b MODeLs 865b AND 885b MODeLs

2 2

1

3 1

3

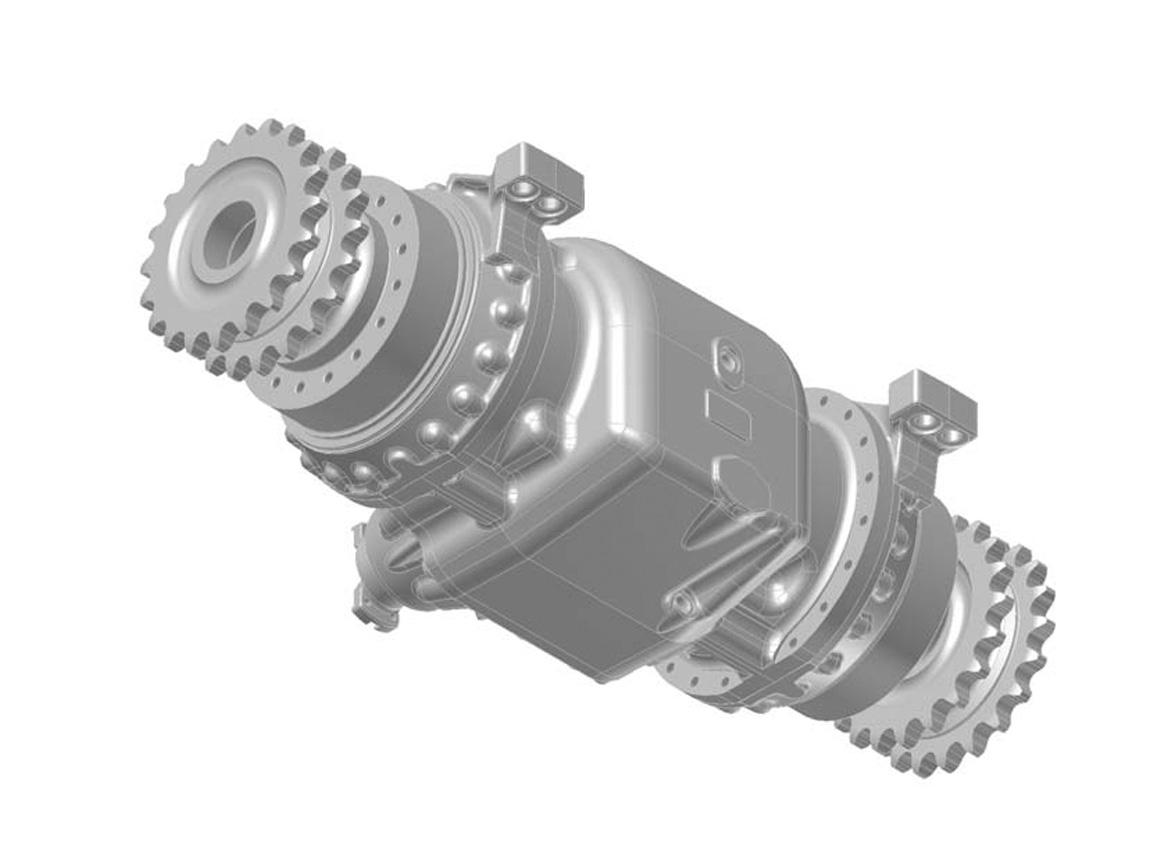

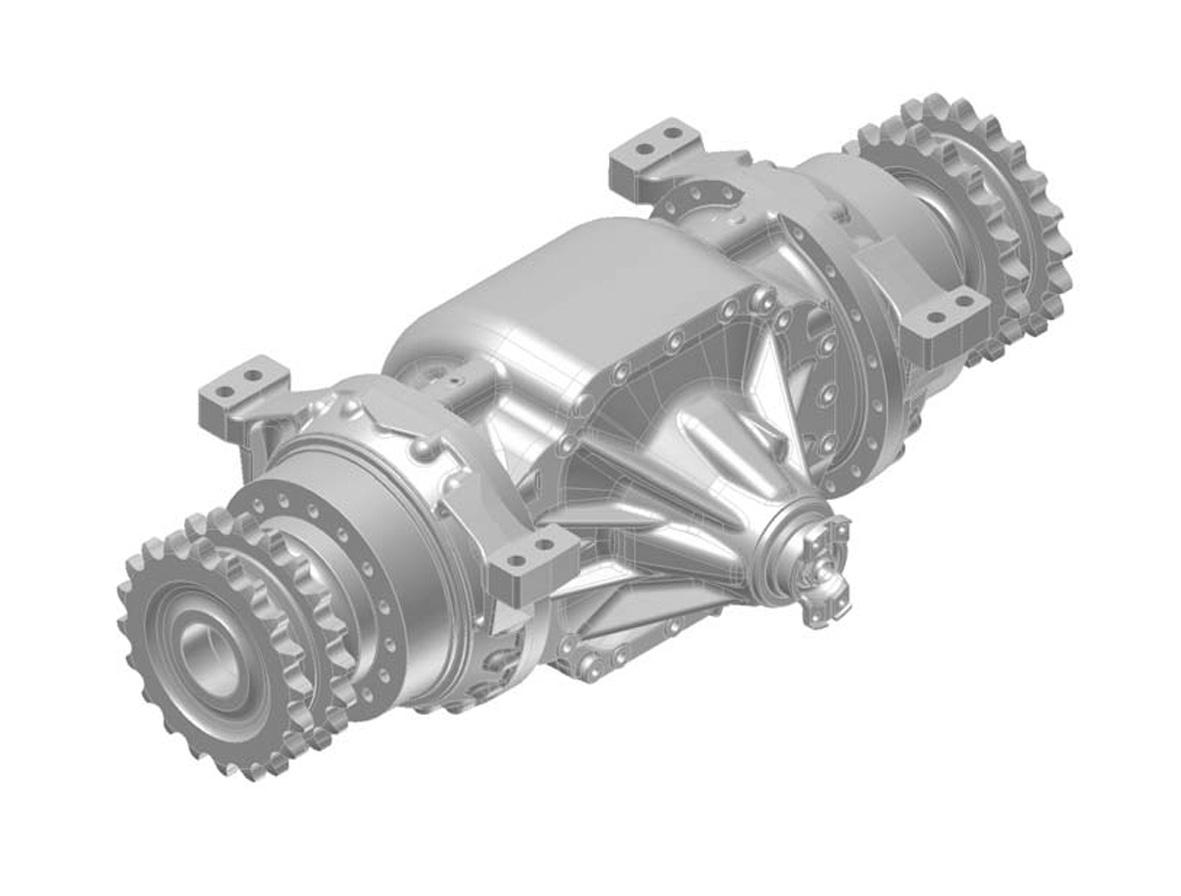

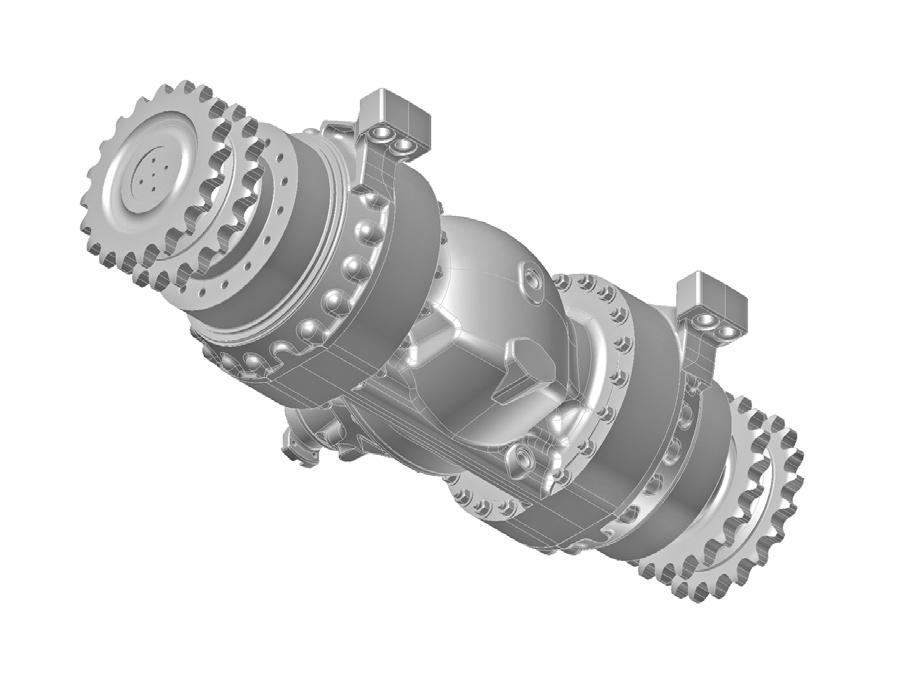

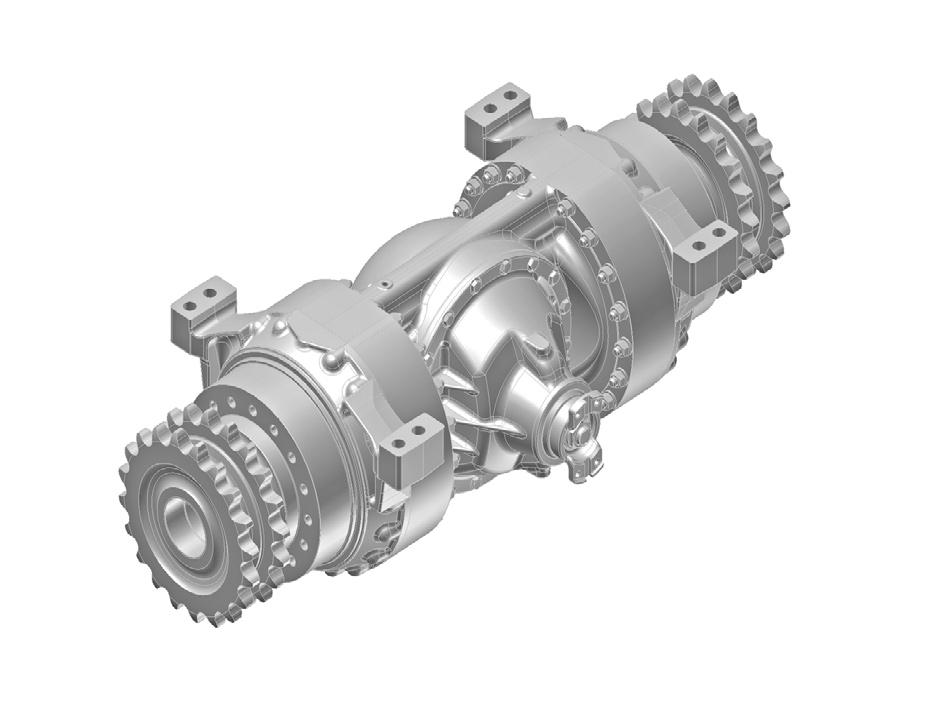

1. DRAIN PLUG 2. FILLER AND LEVEL PLUG 3. BREATHER 1. DRAIN PLUG 2. FILLER AND LEVEL PLUG 3. BREATHER

Park the machine on a level surface. Remove level/ filler plug (2). Add oil as necessary. The fluid level must be at the lower part of the plug hole. Install the plug and make sure it is tightened correctly.

Rear Axle Oil Change

HOUsING COMPARTMeNT

Replace the rear axle oil every 2000 hours of operation. 1. Park the machine on a level surface. Apply the parking brake and stop the engine. 2. Clean the oil level and drain plugs. 3. Make sure the oil in the rear axle is near normal operating temperature.

4. Remove drain plug (1) and filler plug (2) to help oil drain more rapidly.

5. After draining, reinstall the drain plug and fill the housing to the level of the filler hole with the specified oil. Allow sufficient time for oil to fill all axle compartments. Await approximately 15 minutes so that the oil occupies all the inner cavities of the axle. Complete the oil level and install the filling plug.

ATTeNTION: Dispose used oil in specialized recycling stations.
