TRANSPORTING THE MACHINE

from Case 621D Wheel Loader Operators Manual 6-36082 - PDF DOWNLOAD

MACHINE STORAGE

WARNING: The machine can slip and fall from a trailer or ramp and cause injury or death. Make sure the trailer and ramp is not slippery. Remove all oil, grease, ice, etc. Carefully move the machine off or onto the trailer with the machine centered on the trailer and ramp.

WARNING: Before you put the machine on a trailer, remove all snow, ice, oil or grease from the trailer and ramp.

WARNING: Know the rules, regulations, laws and safety equipment necessary for transporting or operating this machine on a road or highway. Rotating beacon, backup alarm, slow moving vehicle emblem and other safety equipment items are available from your dealer.

SB042

46-76C

You must know the rules or laws for transportation and safety that are used in each area that you will be in. Make sure that the truck and machine are equipped with the correct safety equipment. 1.Put a block at the front and rear of each trailer wheel. 2.Be Careful, move the machine

SLOWLY onto the trailer.

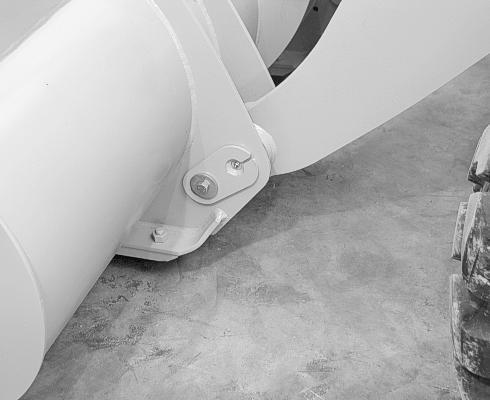

3.Lower the loader bucket onto the trailer. 4.Put the Transport/Service link in the LOCKED position. 5.Apply the parking brake and stop the engine. Remove the key. 6.Make sure the transmission control is in the NEUTRAL position and loader controls are in the HOLD position. 7.Turn the battery master disconnect switch to the OFF position. 8.Put blocks at the FRONT and

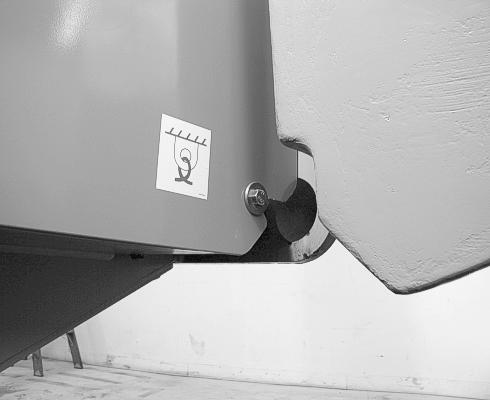

REAR of each tire of the machine. 9.Use chains to fasten the machine to the trailer. See the Next Page for tie down locations of the machine.

10.Put a cover over the exhaust pipe. 11.Rotate the beacon (if equipped) to the TRANSPORT position. See beacon in this manual. (if equipped) 12.Measure from the ground to the highest point of the machine. You must know the clearance height of the machine.

84-13A
