BACKHOE - CONTROL VALVES 4 SPOOLS - FOR AXI.

REF FN PART NUMBER

43A 1 G110237 44 1 G33102 45 G34001 46 G34000 47 G107251 48 G33965 49 G34675 50 25-106

(1) See figure 292, 296, 301C, 304 and 306 YR/SN QTY DESCRIPTION

1 VALVE DIPPER section, For E46371 1 MANIFOLD INLET section 6 O-RING 0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro 18 O-RING 0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro 6 SHIM 10.31mm ID x 20.62mm OD x 0.06mm Thk 6 SHIM 22.86mm OD x 0.06mm Thk 4 TIE-ROD STUD 8 NUT 3/8"-16, G5

580G-CASE CONSTRUCTION KING LOADER BACKHOE

292

p1 1/2019

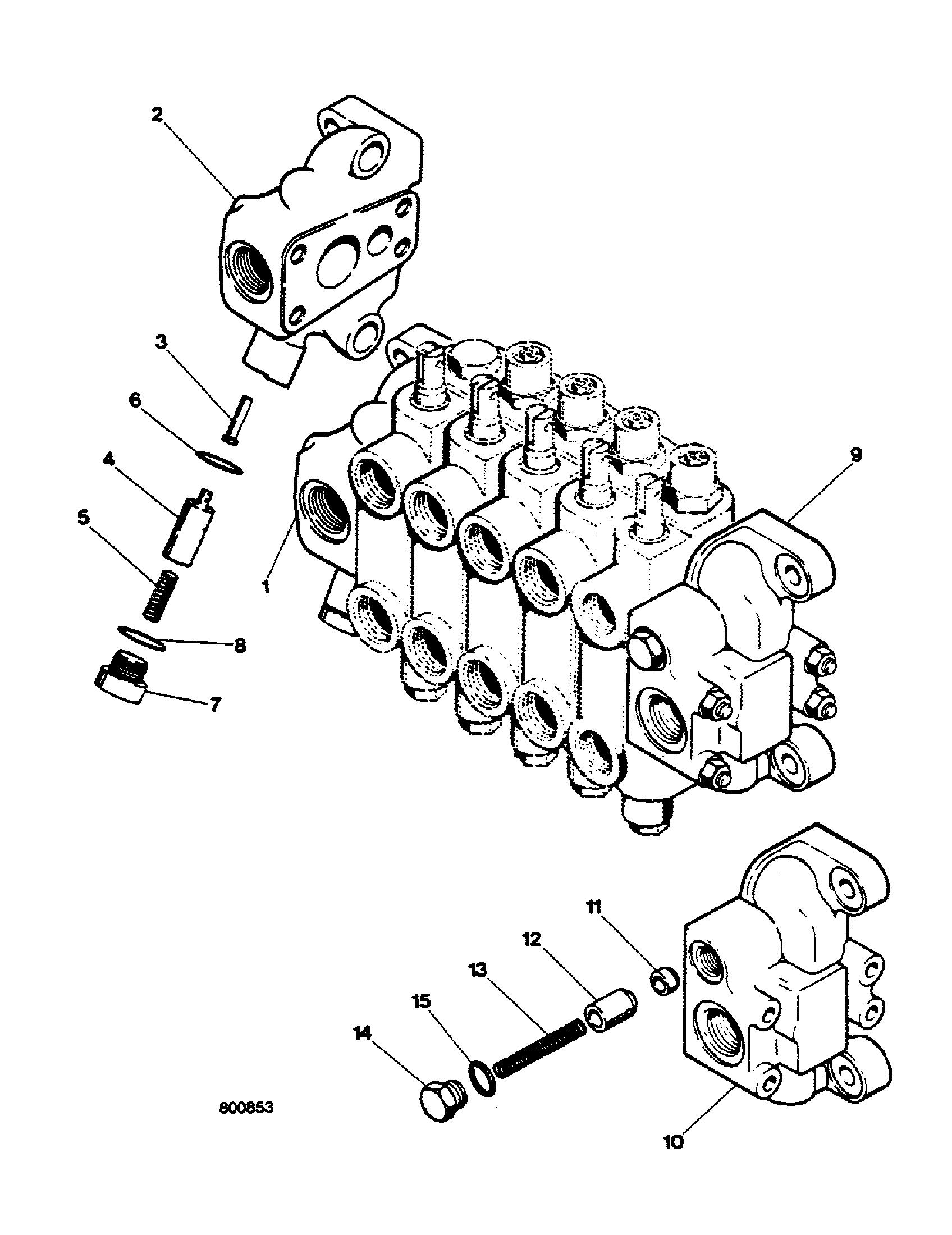

BACKHOE CONTROL VALVE - INLET AND OUTLET SECTIONS
