GAUGE CLUSTER

GAUGE CLUSTER

0.08.4

p1 02/08

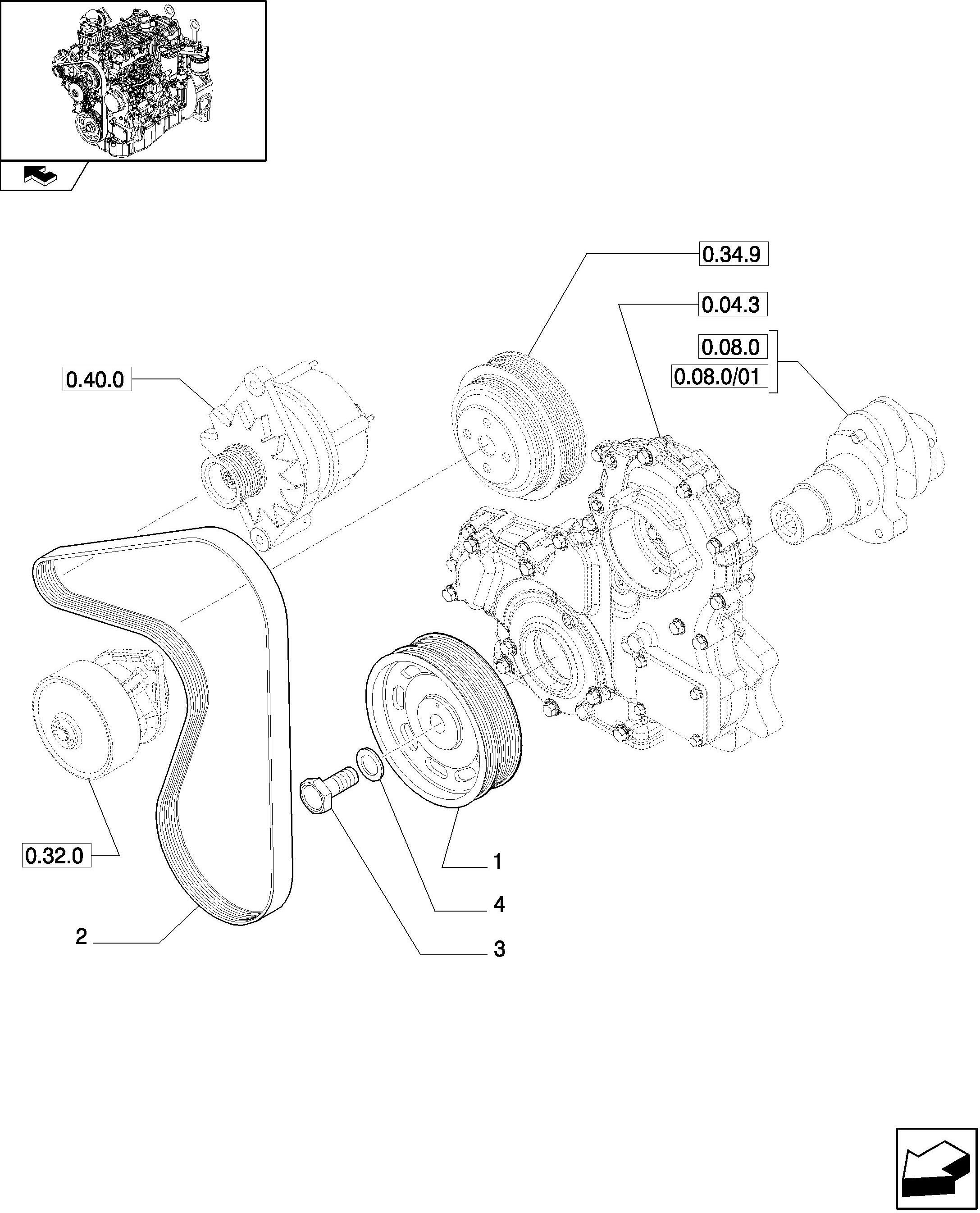

PULLEY - CRANKSHAFT

0.08.4

PULLEY - CRANKSHAFT

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 504223849 2 504213623 3 98419203 4 17092874 1 PULLEY 1 BELT 1 SCREW, M20X1,5X58 1 WASHER, THRUST p1 02/08
