MAINTENANCE SAFETY

Instructions are necessary before operating or servicing machine. Read and understand the Operation & Maintenance Manual, Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Untrained operators and failure to follow instructions can cause injury or death.

Safety Alert Symbol:This symbol with a warning statement, means: “Warning, be alert! Your safety is involved!” Carefully read the message that follows.

Correct

Correct

Correct

Never service the Bobcat® Skid Steer Loader without instructions.

Wrong

Use the correct procedure to lift or lower operator cab.

Cleaning and maintenance are required daily.

Wrong Wrong

Have good ventilation when welding or grinding painted parts. Wear dust mask when grinding painted parts. Toxic dust and gas can be produced. Avoid exhaust fume leaks which can kill without warning. Exhaust system must be tightly sealed.

Disconnecting or loosening any hydraulic tubeline, hose, fitting, component or a part failure can cause lift arms to drop. Do not go under lift arms when raised unless supported by an approved lift arm support device. Replace if damaged.

Never work on loader with lift arms up unless lift arms are held by an approved lift arm support device. Replace if damaged. Never modify equipment or add attachments not approved by Bobcat Company.

Wrong Wrong Wrong

Stop, cool and clean engine of flammable materials before checking fluids.

Never service or adjust loader with the engine running unless instructed to do so in the manual. Avoid contact with leaking hydraulic fluid or diesel fuel under pressure. It can penetrate the skin or eyes.

Never fill fuel tank with engine running, while smoking or when near open flame.

Keep body, jewelry and clothing away from moving parts, electrical contacts, hot parts and exhaust.

Wear eye protection to guard from battery acid, compressed springs, fluids under pressure and flying debris when engines are running or tools are used. Use eye protection approved for type of welding. Keep rear door closed except for service. Close and latch door before operating the loader.

Lead–acid batteries produce flammable and explosive gases. Keep arcs, sparks, flames and lighted tobacco away from batteries. Batteries contain acid which burns eyes or skin on contact. Wear protective clothing. If acid contacts body, flush well with water. For eye contact flush well and get immediate medical attention.

Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/operator without any specific technical training. Maintenance procedures which arenot in the Operation & Maintenance Manual must be performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL. Always use genuine Bobcat replacement parts. The Service Safety Training Course is available from your Bobcat dealer.

SERVICE SCHEDULE

5. Maintenance work must be done at regular intervals. Failure to do so will result in excessivewear and early failures. The service schedule is a guide for correct maintenance of the Bobcat loader.

Instructions are necessary before operating or servicing machine. Read and understand the Operation & Maintenance Manual, Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Failure to follow instructions can cause injury or death.

Engine Oil Check the oil level and add oil as needed.

Engine Air Filter Check condition indicator or display panel. Service only when and Air System required. Check for leaks and damaged components.

Engine Cooling SystemClean debris from oil cooler, radiator and grill. Check coolant level in recovery tank (engine cold). Add coolant as needed.

Tires Check for damaged tires and correct air pressure.

Seat Belt, Seat Bar, Foot Check the condition of seat belt. Check the seat bar, and foot pedal Pedal or Hand Controlinterlocks or hand control interlocks. Clean dirt and debris from Interlocks moving parts.

Safety Signs and SafetyCheck for damaged signs (decals) and safety tread. Replace any Tread signs or safety treads that are damaged or worn.

Indicators & Lights (Opt.)Check for correct operation of all indicators & lights.

Operator Cab Check the fastening bolts, washers & nuts. Check the condition of cab.

Lift Arms, Cyl., Bob–TachLubricate with multi–purpose lithium based grease.

Pivot Pins and Wedges

Fuel Filter Remove the trapped water.

Bobcat Interlock ControlCheck BICSTM functions. System (BICSTM)

Hydraulic Fluid, Hoses andCheck fluid level and add as needed. Check for damage and Tubelines leaks. Repair or replace as needed.

Final Drive Trans.(Chaincase) Check oil level.

Foot Pedals, Hand Controls,Check for correct operation. Repair or adjust as needed. and Steering Levers

Wheel NutsCheck for loose wheel nuts and tighten to 105–115 ft.–lbs. (142–156 Nm) torque.

Parking BrakeCheck operation.

Spark Arrestor MufflerClean the spark chamber.

BatteryCheck cables, connections and electrolyte level. Add distilled water as needed

Steering Shaft Grease two fittings.

Engine/Hydros. Drive BeltCheck for wear or damage. Adjust as needed.

Fan Drive Gearbox Check gear lube level. Add as needed.

Alternator Belt Check belt tension and adjust as needed.

Engine Oil and FilterReplace oil and filter. Use CD or better grade oil and Bobcat filter.

Fuel Filter Replace the filter element.

Hydraulic Reservoir Replace the reservoir breather cap.

Breather Cap

Hydraulic Reservoir Replace the fluid.

Final Drive Trans (Chaincase) Replace the fluid.

Hydraulic/Hydrostatic FilterReplace the filter element.

Case Drain Filters Replace the filters.

Bobcat Interlock ControlCheck lift arm bypass control System (BICSTM)

Check wheel nut torque every 8 hours for the first 24 hours. Replace filter element after the first 50 hours and when the transmission warning light comes ON. Or every 12 months.

*Inspect the new belt after first 50 hours. First oil and filter change must occur at 50 hours; 250 hours thereafter.

Never work on a machine with the lift arms up unless the lift arms are secured by an approved lift arm support device. Failure to use an approved lift arm support device can allow the lift arms or attachment to fall and cause injury or death.

W–2059–0598

Engaging The Lift Arm Support Device

6.

Maintenance and service work can be done with the lift arms lowered. If the lift arms are raised, use the following procedure:

Put jackstands under the rear corners of the loader frame. Disconnect the spring from the lift arm support device retaining pin (Item 1) [A]. Hold onto the lift arm support device (Item 2) [A] and remove the retaining pin.

Lower the lift arm support device on top of the lift cylinder. Hook the free end of the spring (Item 1)[B] to the lift arm support device so there will be no interference with the support device engagement.

With the operator in the seat, seat belt fastened and seat bar lowered, start the engine,press the green PRESS TO OPERATE Button.

Raise the lift arms, until the lift arm support device drops onto the lift cylinder rod [C]

Lower the lift arms slowly until the support device is held between the lift arm and the lift cylinder. Stop the engine.

Raise the seat bar and move foot pedals (or mechanical hand controls) until both lock.

Install pin (Item 1) [C] into the rear of the lift arm support device below the cylinder rod.

Service lift arm support device if damaged or if parts are missing. Using a damaged lift arm support or with missing parts can cause lift arms to drop causing injury or death.

W–2271–1197

LIFT ARM SUPPORT DEVICE (Cont’d)

Disengaging The Lift Arm Support Device

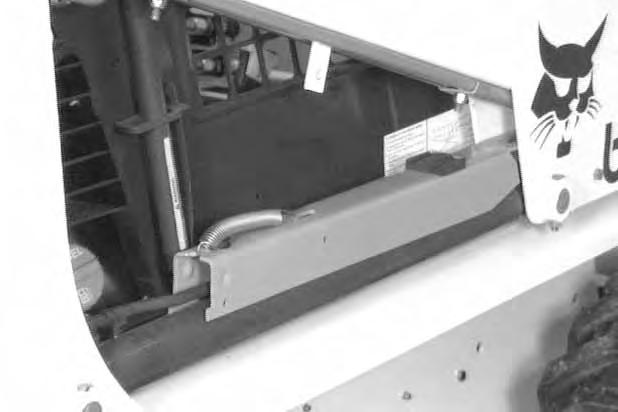

Remove the pin from the lift arm support device (Item 1) [A]

Connect the spring (Item 2) [A] from the lift arm support device to the bracket below the lift arms.

With the operator in the seat, seat belt fastened and seat bar lowered, start the engine,press the green PRESS TO OPERATE Button.

Raise the lift arms a small amount and the spring will lift the support device off the lift cylinder rod.

Lower the lift arms.

Stop the engine.

Raise the seat bar and move foot pedals (or mechanical hand controls) until both lock.

Disconnect the spring from the bracket.

Raise the support device into storage position and insert pin through lift arm support device and bracket [B].

Connect spring to pin [B].

Operator Cab

The Bobcat loader has an operator cab (ROPS and FOPS) as standard equipment to protect the operator from rollover and falling objects. Check with your dealer if the operator cab has been damaged.

ROPS/FOPS – Roll Over Protective Structure per SAE J1040 and ISO 3471, and Falling Object Protective Structure per SAE J1043 and ISO 3449, Level l. Level ll is available.

Level l – Protection from falling bricks, small concrete blocks and hand tools encountered in operations such as highway maintenance, landscaping, and other construction site services.

Level ll – Protection from falling trees, rocks; for machines involved in site clearing, overhead demolition or forestry.

Never modify operator cab by welding, grinding, drilling holes or adding attachments unless instructed to do so by Bobcat Company. Changes to the cab can cause loss of operator protection from rollover and falling objects, and result in injury or death.

W–2069–1285

Raising The Operator Cab

7.

Always stop the engine before raising or lowering the cab.

Stop the loader on a level surface. Lower the lift arms. Stop the engine. If the lift arms must be up while raising the operator cab, install the lift arm support device. (See Engaging The Lift Arm Support Device Page 42.)

Put Jackstands under the rear of the loader frame.

Loosen the nut (both sides) at the front corner of the operator cab [A]

Remove the nut and plate (both sides) [A]

With Mechanical Hand Controls Only: Disconnect the control linkage joint from the bottom hole (work position) and move to the TOP hole on the control handle (both sides) [B]. Both control handles must be in the vertical position so there will be no cab interference with the steering levers when the operator cab is raised or lowered.

Lift on the grab handle and bottom of the operator cab slowly until the cab latching mechanism engages and the cab is all the way up [C]

OPERATOR CAB (Cont’d)

Lowering The Operator Cab

Always stop the engine before raising or lowering the cab.

NOTE:Make sure the seat bar is fully raised or lowered when lowering the cab. Always use the grab handles to lower the cab.

Pull down on the bottom of the operator cab until it stops at the latching mechanism.

Release the latching mechanism and pull the cab all the way down [A]

Mechanical Hand Controls Only: Move the control linkage from the top hole to the BOTTOM hole (work position) on the control handle (both sides) [B]

Install the plate and nut (both sides) [C]

Tighten the nuts to 40–50 ft.–lbs. (54–68 Nm) torque.

Use care when raising or lowering the operator cab to prevent damaging the shaft of the lift lock by–pass valve.

I–2070–0495

Remove the jackstands.

OPERATOR CAB (Cont’d)

Emergency Exit

The front opening on the operator cab and rear window provide exits.

Rear Window:

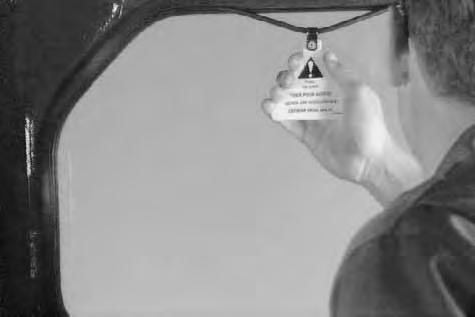

Pull on the tag on the top of the rear window to remove the rubber cord [A]

Push the rear window out of the rear of the operator cab. Exit through the rear of the operator cab [B].

Front Door:

NOTE:When an Operator Cab Enclosure Kit is installed, the window of the front door can be used as an emergency exit. [C]

Pull the plastic loop at the top of the window in the front door to remove the rubber cord [C].

Push the window out with your foot [D].

Exit through the front door.

SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS)

8.

The seat bar restraint system has a pivoting springassist seat bar with arm rests and has spring loaded interlocks for the lift and tilt functions.

The operator controls the use of the seat bar. The seat bar in the down position helps to keep the operator in the seat.

The interlocks require the operator to lower the seat bar in order to operate the foot pedals.

When the seat bar is up, the lift and tilt control functions are locked when returned to the NEUTRAL POSITION.

Avoid Injury Or Death

The seat bar system must lock the lift and tilt control pedals in neutral when the seat bar is up. Service the system if pedals do not lock correctly.

W–2105–1285

Inspecting The Seat Bar

Sit in the seat and fasten the seat belt. Engage the parking brake. Pull the seat bar all the way down. Start the engine. Press the green PRESS TO OPERATE Button. Operate each foot pedal to check both the lift and tilt functions. Raise the lift arms until the bucket is about 2 feet (600 mm) off the ground.

Raise the seat bar. Try to move each foot pedal. Pedals must be firmly locked in neutral position. There must be no motion of the lift arms or tilt (bucket) when the pedals are pushed.

Pull the seat bar down, press the green PRESS TO OPERATE Button and lower the lift arms. Operate the lift pedal. While the lift arms are going up,raise the seat bar and the lift arms should stop.

Lower the seat bar, Press the green PRESS TO OPERATE Button, lower the lift arms and put the bucket flat on the ground. Stop the engine. Raise theseat bar and operate the foot pedals to be sure that the pedals are firmly locked in the neutral position. Unbuckle the seat belt.

Maintaining The Seat Bar

See the SERVICE SCHEDULE Page 41 and on the loader for correct service interval.

Clean any debris or dirt from the moving parts [A] & [B]. Inspect the linkage bolts and nuts for tightness. The correct torque is 25–28 ft.–lbs. (34–38 Nm).

If the seat bar system does not function correctly, check for free movement of each linkage part. Check for excessive wear. Adjust pedal control linkage. Replace parts that are worn or damaged. Use only genuine Bobcat replacement parts.

Avoid Injury Or Death

Never operate loader without interlock shield 6705474 on both interlocks. Shields prevent foot from unlocking interlocks when leaving loader seat.

W–2158–0594

SEAT BAR RESTRAINT SYSTEM (MECHANICAL HAND CONTROLS)

9.

The seat bar restraint system has a pivoting springassist seat bar with arm rests and has spring loaded interlocks for the lift and tilt control functions.

The operator controls the use of the seat bar. The seat bar in the down position helps to keep the operator in the seat.

The interlocks require the operator to lower the seat bar in order to operate the hand controls.

When the seat bar is up, the lift and tilt control functions are locked when returned to the neutral position.

Inspecting The Seat Bar

Sit in the seat and fasten the seat belt. Engage the parking brake. Pull the seat bar all the way down. Press the green PRESS TO OPERATE Button. Start the engine. Operate each hand control to check both the lift and tilt functions. Raise the lift arms until the bucket is about 2 feet (600 mm) off the ground.

Raise the seat bar. Try to move each hand control. The controls must be firmly locked in neutral position. There must be no motion of the lift armsor tilt (bucket) when the hand controls are moved.

Pull the seat bar down, press the green PRESS TO OPERATE Button and lower the lift arms. Operate the lift control. While the lift arms are going up, raise the seat bar and the lift arms should stop.

Lower the seat bar, lower the lift arms, press the green PRESS TO OPERATE Button and put the bucket flat on the ground. Stop the engine. Raise the seat bar and operate the hand controls to be sure that the controls are firmly locked in the neutral position. Unbuckle the seat belt.

Avoid Injury Or Death

Never operate loader without interlock shield 6705474 on both interlocks. Shields prevent foot from unlocking interlocks when leaving loader seat. W–2158–0594

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the ground.

• Stop the engine.

• Engage the parking brake.

• Raise the seat bar, move hand controls until both lock.

The seat bar system must lock the lift and tilt controls in neutral when the seat bar is up. Service the system if hand controls do not lock correctly.

W–2153–0594

Maintaining The Seat Bar

See the SERVICE SCHEDULE Page 41 for correct service interval.

Clean any debris or dirt from the moving parts [A] & [B] Inspect the linkage bolts and nuts for tightness. The correct torque is 25–28 ft.–lbs. (34–38 Nm).

If the seat bar system does not function correctly, check for free movement of each linkage part. Check for excessive wear. Adjust hand control linkage. Replace parts that are worn or damaged. Use only genuine Bobcat replacement parts.

SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS)

The seat bar restraint system has a pivoting seat bar (Item 1) [A] with arm rests.

The operator controls the use of the seat bar. The seat bar in the down position helps to keep the operator in the seat.

When the seat bar is down and the green PRESS TO OPERATE Button is activated, the lift, tilt, and traction drive functions can be operated.

When the seat bar is up, the lift, tilt, and traction drive functions are deactivated.

Inspecting The Seat Bar

Sit in the operator’s seat. Turn the key ON, lower the seat bar and press the green PRESS TO OPERATE Button. Both lights on the left handle should be ON.

Move each hand control back and forth. You should hear the zip,zip sound of the lift and tilt actuators moving the control valve spools (under the seat).

Raise the seat bar fully. Both lights on the left handle should be OFF.

Move each hand control back and forth. There must be no zip–zip sound of the lift or tilt actuators. If either actuator makes a sound while the seat bar is raised, contact your dealer for service.

Maintaining The Seat Bar

See the SERVICE SCHEDULE Page 41 for correct service interval.

Clean any debris or dirt from the moving parts [B]

If the seat bar system does not function correctly replace parts that are worn or damaged. Use only genuineBobcat replacement parts.

Before you leave the operator’s seat:

P–10361

• Lower the lift arms, put the attachment flat on the ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Advanced Hand Controls) Move the hand controls to the NEUTRAL POSITION to make sure that both lift and tilt functions are deactivated.

Clean 1 Operation & Maintenance Manual 49 753 Bobcat Loader

BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

Inspecting The BICS™ Controller 10.

(Engine STOPPED – Key ON)

1.Sit in the operator’s seat. Turn key ON, lower the seat bar and disengage the parking brake pedal. Press the green PRESS TO OPERATE Button. All five BICS controller lights should be ON (Items 1, 2, 3, 4 & 5) [A]

2.Engage the parking brake pedal and raise the seat bar fully. System Activated (Item 1), Seat Bar (Item 2), Valve (Item 3) and Traction lights (Item 4) [A] should be OFF.

NOTE:Record what lights are blinking (if any) and number of blinks. Refer to Page 81.

3.Exit the loader and press Traction Lock Override button. Traction light (Item 4) [A] should be ON. Press override button again and Traction light (Item 4) [A] should be OFF.

Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED – Key ON)

4.Sit in the operator’s seat. Lower the Seat Bar. Press the green PRESS TO OPERATE Button. Press the auxiliary hydraulics switch. The auxiliary switch light will come ON. Raise the Seat Bar. The light should be OFF.

Inspecting The Seat Bar Sensor (Engine RUNNING)

5.Sit in the operator’s seat. Lower the seat bar. Engage the parking brake pedal. Fasten the seat belt.

6.Start the engine and operate at low idle. Press the green PRESS TO OPERATE Button. While raising the lift arms, raise the Seat Bar fully. The lift arms should stop. Repeat using the tilt function.

Inspecting The Traction Lock (Engine RUNNING)

7.Fasten the seat belt, disengage the parking brake pedal, press the green PRESS TO OPERATE Button and raise the Seat Bar fully. Move the steering levers slowly forward and backward. The Traction lock should be engaged. Lower the Seat Bar. Press the greenPRESS TO OPERATE Button.

8.Engage the parking brake pedal and move the steering levers slowly forward and backward. The Traction lock should be engaged.

Inspecting The Lift Arm By–Pass Control

9. Raise the lift arms 6 feet (2 meters) off the ground. Stop the engine.

Turn the lift arm by–pass control knob clockwise 1/4 turn. Then pull up and hold the lift arm by–pass control knob until the lift arms slowly lower.

Additional Inspection For Loaders With Advanced Hand Controls

10.Sit in the operator’s seat and fasten the Seat Belt. Lower the Seat Bar, start the engine and press the green PRESS TO OPERATE Button.

11.Raise the lift arms about 6 feet (2 meters) off the ground.

12.Turn the key OFF and wait for the engine to come to a complete stop.

13.Turn the key ON. Press the green PRESS TO OPERATE Button, move the left hand control toward the operator. The lift arms should not lower.

14.Move the right hand control away from the operator. The bucket (or attachment) should not tilt forward.

AVOID

INJURY OR

Avoid Injury

Never service or adjust the machine when the engine is running unless instructed to do so in the manual.

Pull

Keep

Latch Adjustment

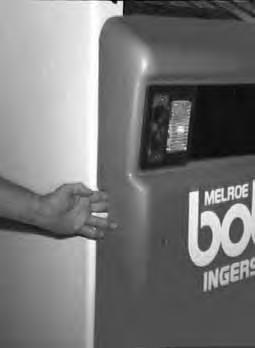

The door latch catch (Item 1) [B] can be adjusted side to side for alignment with the door latch mechanism.

The door latch mechanism (Item 2) [B] can be adjusted backward or forward for alignment with the door catch.

Open the rear door.
