MAINTENANCE SAFETY

Instructions are necessary before operating or servicing machine. Read and understand the Operation & Maintenance Manual, Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Untrained operators and failure to follow instructions can cause injury or death.

Safety Alert Symbol:This symbol with a warning statement, means: “Warning, be alert! Your safety is involved!” Carefully read the message that follows.

Correct

Correct Correct

Never service the Bobcat® Skid Steer Loader without instructions.

Wrong

Have good ventilation when welding or grinding painted parts. Wear dust mask when grinding painted parts. Toxic dust and gas can be produced.

Avoid exhaust fume leaks which can kill without warning. Exhaust system must be tightly sealed.

Use the correct procedure to lift or lower operator cab.

Cleaning and maintenance are required daily.

Wrong Wrong

Disconnecting or loosening any hydraulic tubeline, hose, fitting, component or a part failure can cause lift arms to drop. Do not go under lift arms when raised unless supported by an approved lift arm support device. Replace if damaged.

Never work on loader with lift arms up unless lift arms are held by an approved lift arm support device. Replace if damaged. Never modify equipment or add attachments not approved by Bobcat Company.

Wrong Wrong Wrong

Stop, cool and clean engine of flammable materials before checking fluids.

Never service or adjust loader with the engine running unless instructed to do so in the manual. Avoid contact with leaking hydraulic fluid or diesel fuel under pressure. It can penetrate the skin or eyes.

Never fill fuel tank with engine running, while smoking or when near open flame.

Keep body, jewelry and clothing away from moving parts, electrical contacts, hot parts and exhaust.

Wear eye protection to guard from battery acid, compressed springs, fluids under pressure and flying debris when engines are running or tools are used. Use eye protection approved for type of welding. Keep rear door closed except for service. Close and latch door before operating the loader.

Lead–acid batteries produce flammable and explosive gases. Keep arcs, sparks, flames and lighted tobacco away from batteries. Batteries contain acid which burns eyes or skin on contact. Wear protective clothing. If acid contacts body, flush well with water. For eye contact flush well and get immediate medical attention.

Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/operator without any specific technical training. Maintenance procedures which arenot in the Operation & Maintenance Manual must be performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL. Always use genuine Bobcat replacement parts. The Service Safety Training Course is available from your Bobcat dealer.

SERVICE SCHEDULE Chart

Maintenance work must be done at regular intervals. Failure to do so will result in excessive wear and early failures. The service schedule is a guide for correct maintenance of the Bobcat loader.

Instructions are necessary before operating or servicing machine. Read and understand the Operation & Maintenance Manual, Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Untrained operators and failure to follow instructions can cause injury or death.

W–2003–0199

Service Schedule Hours

Engine Air Cleaner

Engine Oil

Engine Cooling System

Tires

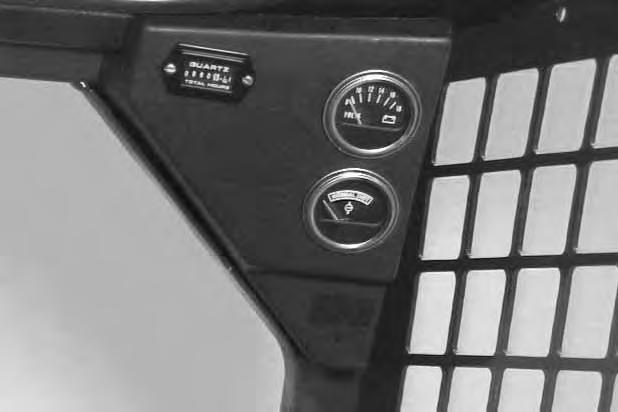

Indicators, Gauges & Lights (Opt.)

Seat Belt, Seat Bar

Safety Signss (Decals) and SafetyTread

Lift Arms and Bob–Tach Pivot Pins and Wedges

Engine Fuel Filter

Hydraulic Fluid, Hoses and Tubelines

Bobcat Interlock Control System (BICSTM)

Battery

Control Pedals & Steering

Bob–Tach

Wheel Nuts

Empty the dust cup & replace the filter element as needed.

Check the oil level and add oil as needed.

Clean debris from oil cooler, radiator and grill. Check coolant level in recovery tank. Add coolant as needed.

Check for damaged tires and correct air pressure.

Check for correct operation of all indicators, gauges & lights (Opt.).

Check the condition of seat belt. Check the seat bar & pedal interlocks for correct operation. Clean dirt and debris from moving parts.

Check for damaged signs (decals) and safety treads. Replace any signs or safety treads that are damaged or worn.

Lubricate with multi–purpose lithium based grease.

Remove the water from the filter.

Check fluid level and add as needed. Check for damage and leaks. Repair or replace as needed.

Check BICS™ System Controller functions. Clean dirt, debris or objects from under or behind seat as required.

Check cables, connections and electrolyte level. Add distilled water as needed.

Check for correct operation repair or adjust as needed.

Check locking levers & wedges for condition & operation.

Check for loose wheel nuts & tighten to 40–45 ft.–lbs. (54–61 Nm) torque.

Parking Brake Check operation.

Alternator Belt

Check belt tension and adjust as needed.

Engine Oil and Filter Replace oil and filter. See engine Oil Chart

Spark Arrestor Muffler Clean the spark chamber.

Drive Belt Clean the spark chamber.

Steering Lever Pivots Lubricate grease fittings and oil hole in the steering shaft.

Hydraulic Filter Element Replace filter element. ◊

Engine Fuel Filter

Replace filter element.

Hydraulic Reservoir Breather Replace the breather cap.

Final Drive Trans (Chaincase) Replace the fluid.

Hydraulic/Hydrostatic Reservoir Replace the fluid.

◊ Replace filter element after first 50 hours of operation. Check wheel nut torque every 8 hours for the first 24 hours. Also replace hydraulic/hydrostatic filter element when the transmission warning light stays on for five minutes after the fluid is at operating temperature. Or every 12 months.

Never work on a machine with the lift arms up unless the lift arms are secured by an approved lift arm support device. Failure to use an approved lift arm support device can allow the lift arms or attachment to fall and cause injury or death.

W–2059–0598

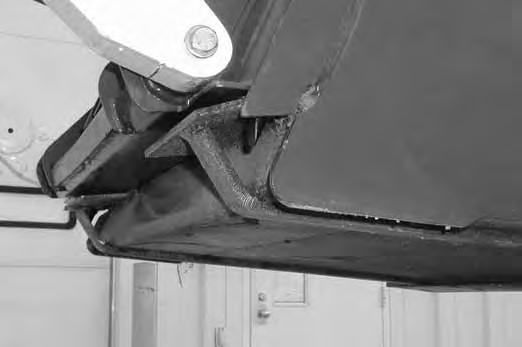

Engaging The Lift Arm Support Device

Put jackstands under the rear corners of the loader (Inset) [A]

Disconnect the spring from the lift arm support device retaining pin (Item 1) [A], hold the support device and remove the retaining pin.

Lower the lift arm support device on top of the lift cylinder. Fasten the free end of the spring (Item 1) [B] to the lift arm support device so there will be no interference with the support device engagement.

With the operator in the seat, seat belt fastened and seat bar lowered, start the engine, press the green PRESS TO OPERATE Button.

Raise the lift arms until the lift arm support device drops onto the lift cylinder rod [C].

Lower the lift arms slowly until the support device is held between the lift arm and the lift cylinder. Stop the engine. Raise the seat bar and move pedals until both pedals lock.

Install the retaining pin (Item 1) [D] into the rear of the lift arm support device below the cylinder rod.

Service lift arm support device if damaged or if parts are missing. Using a damaged lift arm support or with missing parts can cause lift arms to drop causing injury or death.

W–2271–1197

LIFT ARM SUPPORT DEVICE (Cont’d)

Disengaging The Lift Arm Support Device

Remove the retaining pin (Item 1) [A] from the lift arm support device.

Connect the spring from the lift arm support device to the tubeline bracket (Item 1) [B] on the lift arms.

With the operator in the seat, seat belt fastened and seat bar lowered, start the engine, press the green PRESS TO OPERATE Button.

Raise the lift arms a small amount and the spring will lift the support device off the lift cylinder rod. Lower the lift arms. Stop the engine.

Raise the seat bar and move pedals until both pedals lock. Disconnect the spring from the bracket.

Raise the support device into storage position and insert pin through lift arm support device and bracket(Item 1) [C]

Connect spring to pin [C]

Operator Cab

The Bobcat loader has an operator cab (ROPS and FOPS) as standard equipment to protect the operator from rollover and falling objects. Check with your dealer if the operator cab has been damaged. The seat beltmust be worn for roll over protection.

ROPS/FOPS Roll Over Protective Structure per SAE J1040 and ISO 3471, and Falling Object Protective Structure per SAE J1043 and ISO 3449, Level l

Level l – Protection from falling bricks, small concrete blocks and hand tools encountered in operations such as highway maintenance, landscaping, and other construction site services.

Check with your dealer if the operator cab has been changed.

The operator cab fastening nuts (Item 1) [A] must be tightened to 40–50 ft.–lbs. (54–68 Nm) torque.

Before the cab or the lift arms are raised for service, jackstands must be put under the rear corners of the frame. Failure to use jackstands can allow the machine to tip backward causing injury or death.

Raising The Operator Cab

Stop the loader on a level surface. Put the lift arms all the way down.

Install jackstands under the rear of the loader frame [B].

Open the rear door. (See REAR DOOR Page 37.)

If the lift arms must be up while raising the cab, install the lift arm support device. (See Engaging The Lift Arm Support Device Page 30.)

Remove the two fasteners (Item 1) [A] at the front (both sides) of the operator cab.

Stand on the ground. Lift slowly until operator cab is all the way up [B].

The operator cab will lock in the raised position.

OPERATOR CAB (Cont’d)

Lowering The Operator Cab

Hold the operator cab. Release the locking mechanism by pushing the lever (Item 1) [A] inward from the locked position (Item 2) [A] and turning the lever until it stays in the unlocked position [B]

Remove Your Hand From The Hole Before Lowering The Operator Cab

Stand on the ground and pull down on the operator cab. Avoid slippery surfaces when lowering the cab.

NOTE:Guide the operator cab over the fastening bolts to prevent thread damage.

Install the cab washers and nuts. Tighten the nuts (Item 1) [C] (both sides) to 40–50 ft.–lbs. (54–68 Nm) torque.

OPERATOR CAB (Cont’d)

Emergency Exit

The front opening of the operator cab and rear window provide exits.

Pull on the tag at the top of the rear window to remove the rubber cord [A].

Push the rear window out of the rear of the operator cab.

Seat Bar Restraint System

The seat bar restraint system has a pivoting seat bar with arm rests and has spring loaded interlocks for the lift and tilt control pedals. The operator controls the use of the seat bar. The seat bar in the down position helps to keep the operator in the seat. The interlocks require the operator to lower the seat bar in order to operate the foot pedal controls. When the seat bar is up, the lift and tilt pedals are locked when returned to the neutral position.

Avoid Injury Or Death

The seat bar system must lock the lift and tilt control pedals in neutral when the seat bar is up. Service the system if pedals do not lock correctly.

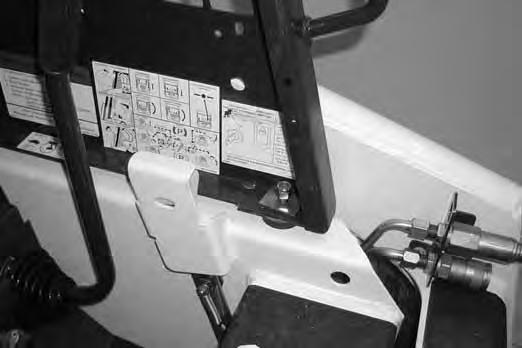

Seat Bar Inspection

Sit in the seat and fasten the seat belt. Engage the parking brake. Pull the seat bar all the way down. Start the engine. Press the green PRESS TO OPERATE Button. Operate each foot pedal to check both the lift and tilt functions. Raise the lift arms until the bucket is about 2feet (600 mm) off the ground.

Raise the seat bar, try to move each pedal. The pedals must be firmly locked in neutral position. There must be no motion of the tilt (bucket) or the lift arms when the pedals are pushed.

Pull the seat bar down, press the green PRESS TO OPERATE Button and lower the lift arms. Operate the lift pedal. While the lift arms are going up, raise the seat bar and the lift arms should stop.

Lower the seat bar, Press the green PRESS TO OPERATE Button, lower the lift arms and put the bucket flat on the ground. Stop the engine. Raise the seat bar and operate the foot pedals to be sure that the pedals are firmly locked in the neutral position. Unbuckle the seat belt.

Seat Bar Maintenance

See the SERVICE SCHEDULE Page 29 and on the loader for correct service interval.

Clean any debris or dirt from the moving parts [A] & [B].

Inspect the linkage bolts and nuts for tightness. The correct torque is 25–28 ft.–lbs. (34–38 Nm).

If the seat bar system does not function correctly, check for free movement of each linkage part. Check for excessive wear. Adjust pedal control linkage. Replace parts that are worn or damaged. Use only genuine Bobcat replacement parts.

Foot Pedal Clean Out

Clean any debris from around the foot pedals. Debris will fall out through the holes under the pedals (Item 1) [C]

BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

Inspecting The BICS™ Controller (Engine STOPPED – Key ON)

1.Sit in the operator’s seat. Turn key ON, lower the seat bar and disengage the parking brake pedal. Press the green PRESS TO OPERATE Button. All five BICS controller lights should be ON (Items 1, 2, 3, 4 & 5) [A]

2.Engage the parking brake pedal and raise the seat bar fully. System Activated (Item 1), Seat Bar (Item 2), Valve (Item 3) and Traction lights (Item 4) [A] should be OFF.

NOTE:Record what lights are flashing (if any) and number of flashes. Refer to Page 60.

3.Exit the loader and press Traction Lock Override button. Traction light (Item 4) [A] should be ON. Press override button again and Traction light (Item 4) [A] should be OFF.

Inspecting The Seat Bar Sensor (Engine RUNNING)

4.Sit in the operator’s seat. Lower the seat bar. Engage the parking brake pedal. Fasten the seat belt.

5.Start the engine and operate at low idle. Press the green PRESS TO OPERATE Button. While raising the lift arms, raise the Seat Bar fully. The lift arms should stop. Repeat using the tilt function.

NOTE:The auxiliary hydraulic functions are not affected by the Bobcat Interlock Control System (BICS™).

Inspecting The Traction Lock (Engine RUNNING)

6.Fasten the seat belt, disengage the parking brake pedal, press the green PRESS TO OPERATE Button and raise the Seat Bar fully. Move the steering levers slowly forward and backward. The Traction lock should be engaged. Lower the Seat Bar. Press the green PRESS TO OPERATE Button.

7.Engage the parking brake pedal and move the steering levers slowly forward and backward. The Traction lock should be engaged.

Inspecting The Lift Arm By–Pass Control

8.Raise the lift arms 6 feet (2 meters) off the ground. Stop the engine.

Pull and hold the by–pass control knob. Push the toe of the left foot pedal until the lift arms slowly lower.

AVOID INJURY OR DEATH

The Bobcat Interlock Control System (BICS™) must deactivate the lift, tilt and traction drive functions. If it does not, contact your dealer for service. DO NOT modify the system.

W–2151–0394

Avoid Injury

Never service or adjust the machine when the engine is running unless instructed to do so in this manual.

W–2012–0290

Open the rear door to service the engine. Pullthe latch pin (rotate clockwise) on the left side ofthe rear door [A]. Open the rear door.

Keep the rear door closed when operating the machine. Failure to do so could seriously injure a bystander.

W–2020–1285

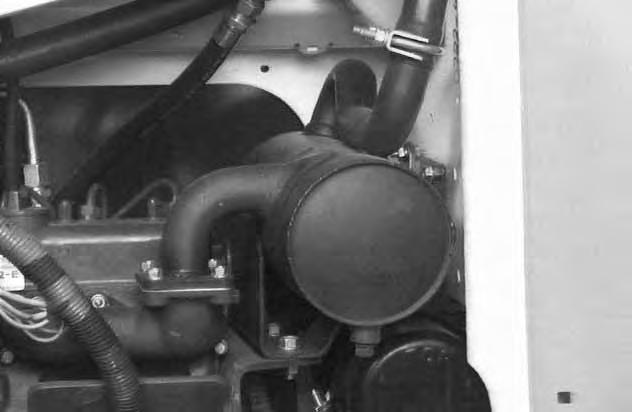

Air Cleaner Service

See the SERVICE SCHEDULE Page 29 for the interval to service the air cleaner system.

Check the air intake hose and the air cleaner housing for damage.

Check to make sure all connections are tight.

NOTE:Before replacing the filter element, push the button on the condition indicator (Item 1) [A]. Start the engine, then sop the engine. If the red ring does not show, do not replace the filter element.

Replace the outer filter element only when the red ring shows in the window of the condition indicator (Item 2)[A]

Replace the inner filter every third time the outer filter is replaced or when the red ring still shows in the indicator window after the outer filter has been replaced.

Release the three fasteners (Item 3) [A] and remove the cover. Clean any debris or dust from the cover.

Remove the outer filter element (Item 1) [B] and if required, remove the inner filter element (Item 1) [C] install the cover and engage the three fasteners.

Clean the inside of the filter housing.

Install the inner element, if required.

Install the outer element.

Fuel System

Fuel Specifications

Use only clean, high quality diesel fuel, Grade No. 2 or Grade No. 1.

The following is one suggested blending guideline which should prevent fuel gelling problems:

Temp. F°/C° No. 2No. 1 +15o(–9o) 100%0%

Down to –20o/–29o 50% 50% Below –20o/–29o 0% 100%

We recommend an operator contact their fuel supplier for local recommendations.

The fuel gauge (Item 1)[A] and the fuel shut off valve (Item 2) [A] are located on the right side of the loader.

Stop and cool the engine before adding fuel. NO SMOKING! Failure to obey warnings can cause an explosion or fire.

Filling The Fuel Tank

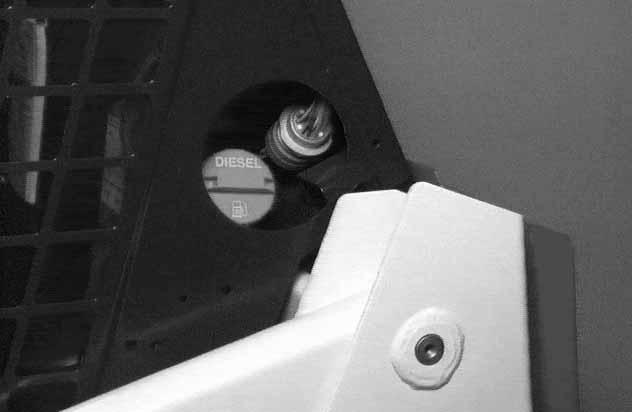

Remove the fuel fill cap [B] from the left side of the loader.

Use a clean, approved safety container to add fuel of the correct specifications. Add fuel only in an area that hasfree movement of air and no open flames or sparks. NO SMOKING [C].

Install and tighten the fuel fill cap [B].

Always clean up spilled fuel or oil. Keep heat, flames, sparks or lighted tobacco away from fuel and oil. Failure to use care around combustibles can cause explosion or fire which can result in injury or death.W–2103–1285

Always clean up spilled fuel or oil. Keep heat, flames, sparks or lighted tobacco away from fuel and oil. Failure to use care around combustibles can cause explosion or fire which can result in injury or death.W–2103–1285

Fuel Filter

Drain Water:

See the SERVICE SCHEDULE Page 29 for the service interval when to remove the water from the fuel filter.

Turn the fuel shut–off valve (Item 1) [A] clockwise to shut off the fuel supply.

Loosen the drain (Item 1) [B] at the bottom of the filter element to drain the water from the filter. Close the drain.

Open the shut–off valve (Item 1) [A] to turn on the fuel supply.

Replace Fuel Filter:

See the SERVICE SCHEDULE Page 29 for the service interval when to replace the fuel filter.

Clean the area around the fuel filter.

Close the shut–off valve (Item 1) [A]

Remove the fuel filter [B].

NOTE:Be sure the filter gasket is removed with the old fuel filter.

Install the new filter element hand tight.

Open the shut–off valve (Item 1) [A].

FUEL SYSTEM (Cont’d)

Removing Air From The Fuel System

After replacing the fuel filter element or when the fuel tank has run out of fuel, the air must be removed from the fuel system before starting the engine.

Be sure the engine is cool.

Open the rear door.

Open the vent plug (Item 1) [A]

Operate the hand pump priming bulb (Item 2) [A] until fuel flows from the vent plug with no air bubbles.

Close the vent plug (Item 1) [A]

With the operator in the seat, seat belt fastened, seat bar lowered and parking brake engaged, start the engine.

NOTE:If the engine fails to start, remove air from the fuel injection pump as follows.

Put jackstands under the rear of the frame and raise the operator cab. (See Raising The Operator Cab Page 32.)

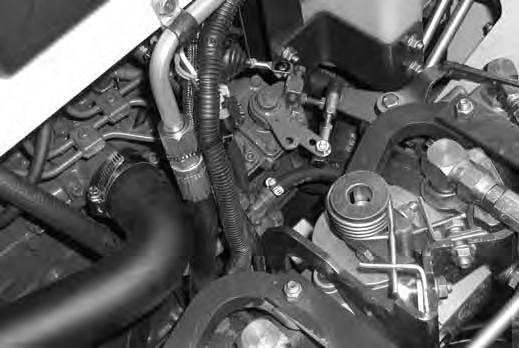

Open the valve (Item 1) [B] on the injector pump and squeeze the hand pump (Item 2)[A] several times until fuel comes from the valve.

Close the valve (Item 1) [B].

Lower the operator cab. (See Lowering The Operator Cab Page 33.)

ENGINE LUBRICATION

System

Check the oil level every day.

Stop the engine and remove the dipstick (Item 1) [A]

Keep the oil level between the marks on the dipstick.Use a good quality motor oil that meets API Service Classification of CD or better. (See Oil Chart below.)

Oil Chart

RECOMMENDED SAE VISCOSITY NUMBER (LUBRICATION OILS FOR DIESEL ENGINE CRANKCASE)

SAE 40W or 20W–50

SAE 10W–30

SAE 15W–40

SAE 30W

* SAE 5W–30

SAE 20W–20

SAE 10W

SYNTHETIC OIL Use recommendation from Synthetic Oil Mfgr.

° –30–20–100+10+20+30+40+50+60+70+80+90+100+110+120

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE (DIESEL ENGINES MUST USE API CLASSIFICATION CD, CF4, CG4 ) * Can be used ONLY when available with appropriate diesel rating.

Replacing Oil And Filter

See the SERVICE SCHEDULE Page 29 for the service interval for replacing the engine oil and filter.

Run the engine until it is at operating temperature. Stop the engine.

Open the rear door and remove the cap from the hose. Drain the oil into a container[B]. Install the cap on the drain hose.

Remove the filter (Item 2) [A]

Clean the filter housing surface. Putclean oil on the gasket of the new filter. Install the filter and hand tighten.

Remove the oil fill cap (Item 1) [C]

Fill to capacity. (See SPECIFICATIONS Page 71.)

Start the engine and let it run for about 5 minutes. Check for leaks at the filter. Check the oil level. Add oil until the level is at the FULL mark on the dipstick. Install the oil fill cap (Item 1) [C]

NOTE:DO NOT overfill the crankcase.

Cooling System

Check the cooling system every day to prevent overheating, loss of performance or engine damage.

Checking The Coolant Level

Open the rear door.

The coolant recovery tank (Item 1) [A] is located between the radiator and the right upright.

The coolant level in the recovery tank must be between the maximum and minimum mark when engine is cool [A].

NOTE:The loader is factory filled with propylene glycol coolant. DO NOT mix propylene glycol with ethylene glycol.

Propylene Glycol

Add premixed coolant; 47% water and 53% propylene glycol to the recovery tank if the coolant level is low.

One gallon and one pint of propylene glycol mixed with one gallon of water is the correct mixture of coolant to provide a –34°F (–37°C) freeze protection.

Use a refractometer to check the condition of propylene glycol in your cooling system.

Use safety goggles when using air or water under pressure. Do not use cold water to clean a hot engine. Failure to obey warnings can cause serious injury.

W–2064–1285

Cleaning The Cooling System

Open the rear door.

Use air pressure or water pressure to remove the debris in the area of the radiator and oil cooler

Removing Coolant From The Cooling System

Open the rear door.

Put the drain hose (Item 1) [B] into a clean container.

Raise the operator cab. (See Raising The Operator Cab Page 32.)

Remove the radiator cap [C].

Open the drain valve (Item 1) [D]. (Located on front of engine, near the fuel lift pump.)

Alternator Belt Adjustment

Stop the engine.

Loosen the mounting bolts (Item 1) [A] and move the alternator.

Set the belt tension to 1/4 inch (6 mm) movement between pulleys with 15 pounds (67 N) of force [B]. Tighten the mounting bolts.

Electrical System

Description

The loader has a 12 volt, negative ground alternator charging system.

The electrical system is protected by 6 fuses.

Fuse Location

The fuses are located under the fuse covers (Item 1) [C] located in the engine compartment.

Electrical System Service

The battery cables must be clean and tight. Remove any acid or corrosion from the battery and cables with a baking soda and water solution. Cover the terminals of the battery with Bobcat Battery Saver (P/N 886398) to prevent corrosion.

Install the terminal covers.

ELECTRICAL SYSTEM (Cont’d)

Battery Removal And Installation

Open the rear door. Disconnect the negative (–) battery cable first (Item 1) [A]

Remove the battery holddown clamp (Item 2) [A]

Remove the battery from the loader [B]

Disconnect the positive (+) cable (Item 1) [B]

Always clean the terminals and cable ends when installing a new battery [C]

When installing the battery in the loader, do not touch any metal parts with the battery terminals.

Connect and tighten the battery cables. Connect the negative (–) cable last to prevent sparks.

Batteries contain acid which burns eyes and skin on contact. Wear goggles, protective clothing and rubber gloves to keep acid off body.

In case of acid contact, wash immediately with water. In case of eye contact get prompt medical attention and wash eye with clean, cool water for at least 15 minutes.

If electrolyte is taken internally drink large quantities of water or milk! DO NOT induce vomiting. Get prompt medical attention.

W–2065–1296

Keep arcs, sparks, flames and lighted tobacco away from batteries. When jumping from booster battery make final connection (negative) at engine frame.

Do not jump start or charge a frozen or damaged battery. Warm battery to 60°F. (16°C.) before connecting to a charger. Unplug charger before connecting or disconnecting cables to battery. Never lean over battery while boosting, testing or charging.

Battery gas can explode and cause serious injury.

W–2066–1296

ELECTRICAL SYSTEM (Cont’d)

Using A Booster Battery (Jump Starting)

Damage to alternator can occur if:

• Engine is operated with battery cables disconnected.

• Battery cables are connected when using a fast charger or when welding on the loader (Remove both cables from the battery).

• Extra battery cables (booster cables) are connected wrong.

If it is necessary to use an extra battery to start the engine, BE CAREFUL! There must be one person in the operator’s seat and one person to connect and disconnect the battery cables.

The ignition must be in the OFF position.

The battery must be 12 volt.

Connect one end of the first cable (Item 1) [A] to the positive terminal (+) of the booster battery. Connect the other end of the same cable (Item 2) [A] to the positive (+) terminal on the starter.

Connect one end of the second cable (Item 3) [A] to the negative terminal (–) of the booster battery. Connect the other end of same cable (Item 4)[A] to the engine mounting frame.

Keep the cables away from moving parts.

Start the engine.

After the engine has started, remove the ground cable connected to the engine first.

Remove the cable connected to the loader battery.

HYDRAULIC/HYDROSTATIC SYSTEM

The hydraulic and hydrostatic systems use the same hydraulic fluid reservoir.

The system has an engine driven gear pump that supplies fluid to the control valve, lift and tilt cylinders.

Fluid also goes from the control valve to the hydrostatic transmission pumps to provide charge pressure and cooling.

A hydraulic filter element is installed under the cab near the right side. This filter is used to clean the fluid for the hydrostatic transmission pumps.

The location of the oil cooler is above the engine. The oil cooler is used for cooling the hydraulic fluid before it returns to the hydrostatic transmission pumps.

Checking And Adding Fluid

Put the Bobcat loader on a level surface. Lower the lift arms and tilt the bucket fully backward.

Open the rear door. Remove the dipstick (Item 1) [A].

The fluid level is correct if the fluid level is between the marks on the dipstick.

NOTE:The dipstick may indicate an incorrect level of fluid when first removed because of expansion or contraction of oil in the fill tube. Always (1) remove the dipstick, (2) wipe the dipstick, (3) insert the dipstick again and (4) re–check the fluid level.

Add fluid until it is at the correct level.

Breather Cap

See the SERVICE SCHEDULE Page 29, for the correct service interval.

Raise the cab (See Raising The Operator Cab Page 32).

Remove and discard the breather cap (Item 1) [B].

Install a new breather cap.

Lower the cab (See Lowering The Operator Cab Page 33).

Diesel fuel or hydraulic fluid under pressure can penetrate skin or eyes, causing serious injury or death. Fluid leaks under pressure may not be visible. Use a piece of cardboard or wood to find leaks. Do not use your bare hand. Wear safety goggles. If fluid enters skin or eyes, get immediate medical attention from a physician familiar with this injury.

HYDRAULIC/HYDROSTATIC SYSTEM (Cont’d)

Replacing The Hydraulic/Hydrostatic Filter Element

See the SERVICE SCHEDULE Page 29 for the correct service interval.

Stop the engine. Open the rear door. Raise the operator cab. (See Raising The Operator Cab Page 32.) Clean the area around the filter housing.

Remove the filter element (Item 1) [A]

Clean the surface of the filter housing where the filter element seal contacts the filter housing.

Put grease on the seal of the filter element, install the element and hand tighten only.

Lower the operator cab.

Start the engine and operate the loader through the hydraulic and hydrostatic functions. Stop the engine. Check the fluid level and add fluid to the reservoir as needed.

Removing The Hydraulic/Hydrostatic Fluid

See the SERVICE SCHEDULE Page 29 for the service interval to replace the fluid. The fluid must also be replaced if it becomes contaminated and after any major repairs.

Stop the engine. Open the rear door.

Remove the fill cap/dipstick.

Loosen the nut (Item 1)[B] which fastens the fill tube to the loader frame.

Loosen the clamp at the fill tube, turn the fill tube down to drain the fluid from the reservoir [B].

After the fluid is removed, put the fill tube in the correct position, tighten the hose clamp and tighten the bolt.

Replace the hydraulic filter element.

Add hydraulic/hydrostatic fluid to the reservoir. (See SPECIFICATIONS Page 71 for the correct fluid.)

Do Not over–fill the reservoir.

Spark Arrestor Muffler

See the SERVICE SCHEDULE Page 29 for correct service interval. Do not operate the loader with a defective exhaust system.

Stop engine and allow the muffler to cool before cleaning the spark chamber. Wear safety goggles. Failure to obey can cause serious injury.

W–2011–1285

When an engine is running in an enclosed area, fresh air must be added to avoid concentration of exhaust fumes. If the engine is stationary, vent the exhaust outside. Exhaust fumes contain odorless, invisible gases which can kill without warning.

W–2050–1285

Stop the engine. Open the rear door.

Remove the plug (Item 1) [A] from the bottom of the muffler.

This loader is factory equipped with a U.S.D.A. Forestry Service approved spark arrestor muffler. It is necessary to do maintenance on this spark arrestor muffler to keep it in working condition. The spark arrestor muffler must be serviced by dumping the spark chamber every 100 hours of operation.

If this machine is operated on flammable forest, brush or grass covered land, it must be equipped with a spark arrestor attached to the exhaust system and maintained in working order. Failure to do so will be in violation of California State Law, Section 4442 PRC.

Never use machine in atmosphere with explosive dust or gases or where exhaust can contact flammable material. Failure to obey warnings can cause injury or death.

W–2068–1285

Start the engine.

Have a second person (wearing safety goggles) hold a block of wood over the outlet of the muffler (with the engine running) for about 10 seconds.

This will force contaminants out through the cleanout hole. Stop the engine and install the plug. Close the rear door.

Make reference to local laws and regulations for spark arrestor requirements.

I–2022–0595

When the engine is running during service, the steering levers must be in neutral and the parking brake engaged. Failure to do so can cause injury or death.

W–2006–0284

Tire Maintenance

Wheel Nuts

See the SERVICE SCHEDULE Page 29 for the service interval to check the wheel nuts. The correct torque is 40–45 ft.–lbs. (54–61 Nm).

Tire Rotation

Check the tires regularly for wear, damage and pressure (See SPECIFICATIONS Page 71 for the correct tire pressure).

Rear tires usually wear faster than front tires. To keep tire wear even, move the front tires to the rear and rear tires to the front [A]

It is important to keep the same size tires on each side of the loader to avoid excessive wear. If different sizes are used, each tire will be turning at a different rate and cause excessive wear. The tread bars of all the tires must face the same direction.

Recommended tire pressure must be maintained to avoid excessive tire wear and loss of stability and handling capability. Check for the correct pressure before operating the loader.

Do not inflate tires above specified pressure. Failure to use correct tire mounting procedure can cause an explosion which can result in injury or death.

W–2078–1285

Tire Inflation

Tires are to be repaired only by an authorized person using the proper procedures and safety equipment. Tires and rims must always be checked for correct size before mounting. Check rim and tire bead for damage.

The rim flange must be cleaned and free of rust. The tire bead and rim flange must be lubricated with a rubber lubricant before mounting the tire, avoid excess pressure which can rupture the tire and cause serious injury ordeath. During inflation of the tire, check the tire pressure frequently to avoid over inflation.

FINAL DRIVE TRANSMISSION (CHAINCASE)

The chaincase contains the final drive sprockets and the chains and is filled with the same type of fluid as is used in the hydraulic system. (See SPECIFICATIONS Page 71.)

Checking And Adding Oil

Put the loader on a level surface.Remove the plug at the front of the chaincase (Item 1) [A]. If the fluid can be reached with the tip of your finger through the hole, the level is correct.

Add fluid through the check plug hole until the fluid flows from the hole. Install and tighten the plug.

Auxiliary Control Lockbolt

The Auxiliary control has a lockbolt (Item 1) [B] that must be removed to use the optional auxiliary hydraulics.

Raise the operator cab. (See Raising The Operator Cab Page 32.)

Remove the nut and bolt (Item 1) [B] from the right hand steering lever.

LUBRICATING

The Loader

Lubricate the loader as specified in the SERVICE SCHEDULE Page 29 for the best performance of the loader.

Record the operating hours each time you lubricate the Bobcat loader.

Always use a good quality lithium based multi–purpose grease when you lubricate the loader. Apply the lubricant until extra grease shows.

Lubricate the following locations on the loader:

Base End Lift Cylinder (Item 1–Both sides) [A]

Rod End Lift Cylinder (Item 1–Both sides) [B]

Lift Arm Pivot Pin (Item 1–Both sides) [C].

Rod End Tilt Cylinder (Item 1) [D].

LUBRICATING THE LOADER (Cont’d)

Base

Pivot Pins

All pivot pins, lift arms and cylinders have a large pin held in position with lockbolts and retainer (Item 1) [A] & [B]

Check that the lockbolts are tightened to 8–10 ft.–lbs. (11–13 Nm) torque.

Do not over–tighten.

BOB–TACH

Inspection And Maintenance

Move the Bob–Tach lever (Item 1) [C] to engage the wedges. The levers and wedges must move freely.

The wedges must extend through the holes in the attachment mounting frame (Item 1) [D]

Bob–Tach wedges must extend through the holes in attachment. Lever(s) must be fully down and locked. Failure to secure wedges can allow attachment to come off and cause injury or death.

Inspect the mounting frame on the attachment and the Bpb–Tach, linkages and wedges for excessive wear or damage. Replace anyu parts that are damaged, bent, or missing. Keep all fasteners tight.

Look for cracked welds. Contact your Bobcat dealer for repair or replacement parts.

Lubricate the wedges (See SERVICE SCHEDULE,Page 29 and LUBRICATION OF THE BOBCAT LOADER, Page 52.)

Troubleshooting

The following information identifies loader problems which can occur most often. Service procedures for correcting loader problems can be found in this manual on the pages indicated. Some procedures are marked D/S (Dealer Service) and must be performed only by qualified Bobcat service personnel.

Instructions are necessary before operating or servicing machine. Read Operation & Maintenance Manual, Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Failure to follow instructions can cause injury or death.

W–2003–0797

Troubleshooting The Engine

Problem Correction Cause

Engine won’t turn over with Battery has low charge. Charge battery and find cause44 starter. for loss of charge.

Cables loose or dirty. Clean and tighten the battery45 cables.

Damaged starter, solenoid orCheck the starting circuit. DS wiring. Repair as needed.

Engine turns with starter, but isWrong starting procedure.Use correct starting procedure.15 difficult to start.

Engine has little power or runsDirt, water or air in fuel system.Clean and repair as needed.40 rough.

DS = Dealer Service Only

TROUBLESHOOTING THE ENGINE (Cont’d)

Engine has little power or runsEngine is hot. Check cooling system. 43 rough (Cont’d).

Governor adjustment is wrong.Check & make adjustment if needed. DS

Dirty air cleaner. Check air cleaner. 38

Engine has lost compression.Recondition the engine. DS

Engine overheats. Cooling system is dirty. Air flowClean cooling system. 43 restricted.

Engine shrouding damaged orRepair or replace. DS missing.

Engine is overheated. Run at full throttle. –

Troubleshooting The Hydraulic System

No hydraulic action. No hydraulic fluid. Check fluid level and add as47 needed.

Pedals are disconnected.Check linkage. Repair as needed. DS

Relief valve is damaged.Replace the relief valve. DS

Hydraulic pump is damaged.Check pump. Replace as DS needed.

Hydraulic fluid is too thick.Let machine warm up. 17 (cold temperature)

Hydraulic action is rough.Hydraulic fluid level is low.Check fluid level and add as47 needed.

Hydraulic action is slow. Pedal is hitting floor or debrisCheck adjustment. RemoveDS under pedal. dirt.

Cylinders leak internally.Check condition of cylindersDS and repair as needed.

Hydraulic pump is damaged.Check pump. Replace as DS needed.

Control valve is damaged.Check valve and repair as DS needed.

Hydraulic fluid is too thick.Let machine warm up. 17 (cold temperature)

Hydraulic cylinders leak fluid.Damage to cylinder rods orRepair cylinders. DS seals.

Troubleshooting The Hydrostatic System

Problem Correction Cause Page

BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

9.

Troubleshooting Chart

The following list shows the effects which can happen to the loader, and the probable causes when the BICS Controller lights are off or flashing. Have the service procedure performed ONLY BY QUALIFIED BOBCAT SERVICE PERSONNEL.

Effect on Operation of Loader

Flashing Indicator Means System Problem

(See Your Bobcat Dealer for Service)

IndicatorWhen Light Is Number of LightLight ON Light OFF OFFFlashes Cause

System PRESS TO OPERATEPRESS TO OPERATE Lift, tilt and traction2System Activated circuit shorted to Activated button is activatedbutton not activatedfunctions will notbattery voltage.* operate.3System Activated circuit shorted to ground.

Seat Bar Seat Bar Down.Seat Bar Up.Lift, tilt and traction2Seat bar sensor circuit shorted to functions will not battery voltage*. operate.

3Seat bar sensor circuit shorted to ground.

Valve Control Valve Control ValveLift and tilt functions2Valve output circuit shorted to battery Can Be Used.Cannot Be Used.will not operate. voltage*.

3Valve output circuit shorted to ground.

3Valve output circuit is not grounded.

Traction Loader can beLoader cannot beLoader cannot be1Traction lock hold coil circuit is open. moved forward moved forward andmoved forward and2Traction lock hold coil circuit shorted & backward.backward.backward. to battery voltage*.

3Traction lock hold coil circuit shorted to ground.

4Traction lock pull coil circuit is open.

5Traction lock pull coil circuit is shorted to battery voltage*.

6Traction lock pull coil circuit is shorted to ground.

Power BICS ControllerBICS Controller isLift, tilt and traction is operatingnot operatingfunctions will notN/AN/A correctly.correctly. operate.

* Normal BICS operating voltage is less than the electrical system voltage. If voltage is more, the circuit is shorted to system voltage.

NOTES:

(1)If the System Activated and/or seat bar sensor circuits are open, the corresponding lights will be OFF. If one of the lights stay OFF, check the circuit for continuity. See Inspection & Maintenance Instructions in Preventive Maintenance section.

(2)If all five lights flash repeatedly, the voltage supply is greater than 16 volts or less than 9 volts.

(3)Flashing patterns will repeat every 3.25 seconds.

Machine Sign Translations

MACHINE SIGNS (DECALS)

Machine signs (decals) are an esential part of the loader. (See Page xiv & xv.) This section provides French and Spanish translations of the machine signs that are in English.

IMPORTANTE (SPANISH)

ESTA MAQUINA ESTA EQUIPADA POR LA FABRICA CON UN AMORTIGUADOR DE CHISPAS DEL SILENCIADOR, APROBADO POR EL SERVICIO DE SILVICULTURA DEL U.S.D.A. (DEPARTMENTO DE AGRICULTURA DE LOS ESTADOS UNIDOS).

ES NECESARIO LIMPIAR ESTE AMORTIGUADOR DE CHISPAS DEL SILENCIADOR PARA MANTENERLO EN BUEN ESTADO. HAY QUE DARLE SERVICIO AL AMORTIGUADOR, VACIANDO LA CAMARA DE CHISPAS CADA 100 HORAS DE FUNCIONAMIENTO.

SI ESTA MAQUINA ESTA DESTINADA PARA TRABAJAR EN BOSQUES, MATORRALES O EN PASTOS QUE PUEDAN INCENDIARSE, ENTONCES TIENE QUE ESTAR EQUIPADA CON UN AMORTIGUADOR DE CHISPAS EN EL SISTEMA DEL ESCAPE Y TIENE QUE MANTENERSE EN PERFECTAS CONDICIONES DE TRABAJO. ES NO HACER ESTO CONSTITUYE UNA INFRACCION DE LA LEY ESTATAL DE CALIFORNIA, SECCION 4442, PRC.

REFIERASE A LAS LEYES Y REGULACIONES LOCALES EN CUANTO A LOS REQUISITOS DEL AMORTIGUADOR DE CHISPAS.

IMPORTANT (FRENCH)

CETTE CHARGEUSE EST EQUIPPEE A LA SORTIE DE L’USINE D’UN SILENCIEUX PARA–ETINCELLES APPROUVE PAR LE SERVICE DES EAUX ET FORETS DES ETATS–UNIS.

IL EST INDISPENSABLE D’EFFECTUER UN ENTRETIEN REGULIER DE CE PARE–ETINCELLES AFIN DE LE GARDER EN BON ETAT DE MARCHE. L’ENTRETIEN CONSISTE A VIDER LA CHAMBRE A ETINCELLES TOUTES LES 100 HEURES DE MARCHE.

SI CET ENGIN EST UTILISE SUR UN TERRAIN COUVERT D’ARBRES, DE BROUSSAILLES, OU D’HERBAGES INFLAMMABLES, IL FAUT INSTALLER LE PARE–ETINCELLES ET LE GARDER EN BON ETAT DE MARCHE.

CONSULTER LES REGLEMENTATIONS LOCALES APPLICABLES.

ADVERTENCIA (SPANISH)

Evite Heridas O La Muerte

• Mantenga le puerta cerrada excepto para dar servicio.

• Mantenga el motor limpio y que no tenga material inflamable.

• Mantenga el cuerpo. objetos sueltos y la ropa lejos de los conductores eléctricos, piezas móviles, piezas calientes y del escape.

• No use el cargador en lugares donde hay polvo o gases explosivos o materiales inflamables cerca al escape.

• Todos los gases del escape pueden matar. Ventile siempre el lugar de trabajo.

• No use nunca éter o líquido del arranque en los motores de diesel que tienen tapones encendedores. Use solamente las ayudas para el arranque que sean aprobados por el fabricante del motor.

• Escapes de líquido bajo presión pueden penetrat en la piel y causar heridas graves. Se requiere atención médica inmediata. Use gafas. Use cartón para revisar si hay fugas.

• El ácido de la batería puede causar quemaduras severas, use gafas. Si el ácido hace contacto con los ojos, la piel o la ropa, lávelos bién con agua. Si el contactor fuel en los ojos, lávelo bién y vaya al médico.

• Las baterias producen gas inflammable y explosivo. Mantenga lejos, arcos, chispas, llamas y tabaco encendido.

• Para arranque con batería auxiliar, conecte de último el cable negativo al motor del cargador (nunca la batería). Despues de hacer el arranque con cables, quite peimero la conección negativa del motor.

AVERTISSEMENT (FRENCH)

EVITER LES BLESSURES, VOIRE LA MORT

• Maintenir la porte arrière fermée, sauf pour les entretiens.

• Débarasser le moteur de toute matière inflammable.

• Maintenir le corps, les objets non attachés et les vêtements à l’écart des contacts électriques, des pièces mobiles et brûlantes et de l’échappement.

• Ne pas utiliser la machine dans un endroit chargé de poussières ou de gaz explosifs, et où l’échappement risque de toucher des matériaux inflammables.

• Les gaz d’échappement peuvent être mortels. Toujours aérer.

• Les liquides sous pression peuvent pénétrer au travers de la peau et causer de graves blessures. Consulter immédiatement un médecin Porter des lunettes de sécurité. Utiliser du carton pour repérer les fuites.

• L’acide des batteries provoque de graves brûlures, porter des lunettes de sécurité. S’il entre en contact avec les yeux, la peau ou les vêtements, rincer généreusement à l’eau. Pour les yeux, appeler un médecin.

• Les batteries dégagent des gaz inflammables et explosifs. Tenir les arcs électriques les étincelles, les flammes et las cigarettes allumées à l’écart.

• En cas de démarrage par pontage, effectuer le dernier branchement (Câble négatif) au moteur (jamais à la batterie). Pour débrancher, déconnecter d’abord le câble négatif du moteur.

• Ne jamais utiliser d’éther ou de liquide de démarrage sur un moteur diesel avec des bougies de préchauffage. N’employer que les aides au démarrage approuvées par le fabricant.

PROGRAMA DE SERVICIO (SPANISH)

CADA 10 HORAS

1.Aceite del Motor–Revise el nivel–no lo llene demasiado (Consulte el Manual del Operario para saber que aceite recominenda).

2.Filtro del Aire del Motor–Revise el medidor y/o el cuadrante. Dele servicio solamente cuando se necesite.

3.Sistema de refrigeración del motor–Eliminar suciedad del refrigerador, del radiador yde las rejillas. Medir el nivel con el refrigerante frio. Completar con mezcla etilenglicol y agua (53/47).

4.Brazo de Elevación del Cargador, Cilindros, Pivote y Cuñas del Bob–Tach–Lubriquelos con grase de base de litio para uso múltiple (12 sitios).

5.Sistema de Aire del Motor–Revise para ver si hay fugas o componentes dañados.

6.En General–Verifique a ver si hay piezas flojas o rotas, daños en el cinturón de seguridad o en la cabina del operario, revise también el funcionamiento de los instrumentos, vea si hay tuercas flojas en las ruedas y fugas de aceite. Inspeccione el funcionamiento de la barra del aciento y arregle o reemplace la que sea necesario antes e poner a trabajar el cargador.

7.Cinturón de seguridad/Dispositivos de bloque de la barra de asiento y controles–Compruebe función. Repare o reemplace como sea necesario. Limpie suciedad y escombros en las partes móviles.

8.Filtro del Combustible–Purgue el agua atrapada (Unicamente motor de diesel).

9.BICS–Verifique la función. Limpie la suciedad, escombros u objetos de abajo o de atrás del asiento tal como se requiere.

10.Llantas–Controle la presión de inflación. Infle las llantas hasta la presión. MAXIMA que se indica enla pared del costado de la llanta.

Cada 50 Horas

1.Líquido Hidráulico–Revise el nivel del líquido. Vea el Manual del Operario para saber el líquido recomendado.

2.Caja de la Cadena–Revise el nivel del líquido. Vea su Manual del Operario para saber el líquido recomendado.

3.Batería–Revise su condición.

4.Mandos y Frenso–Verifique su funcionamiento, ajustelos si es necesario.

5.Aceite del motor (solo en las cargadoras 450)–Vaciar cuando el motor está a su temperatura de trabajo.Ver Manual de Utilización y de Mantenimiento.

CADA 100 HORAS

1. Silenciador con Amortiguador de Chispas–Desocupe la cámara de las chispas.

2.Sistema del Encendido–Si usa combustible que contine plomo, inspeccione las bujías y el sistema del encendido. Si usa combustible sin plomo, de servicio únicamente cuando sea necesario para mantener un encendido bueno y funcionamiento suave (Unicamente para Motores de Gasolina).

3.Vacie el aceite del motor cuando este está a su temperatura de trabajo. Ver Manual de Utilización y de Mantenimiento. (Cada 250 horas para 700 modelos con la KUBOTA motor.)

4.Inspeccione todas las correas de impulso–Verifique las condición y la tensión de todas las correas–Impulso del hidrostático, impulso de la bomba del agua, el alternador y el ventilador. Ajústelas y reemplácelas a media que sea necesario.

5.Sistema hidráulico/hidrostatico (solamente modelos 400 y 500)–Cambiar el filtro. Nota: El filtro ha de cambiarse antes si el inficador de aviso de la trasmision permanece encendido mas de 5 minutos despues de que el fluido hidráulico haya alcanzado su temperatura de trabajo.

CADA 250 HORAS (O CADA 12 MESES)

1.Filtro Final del Combustible–Reemplace el elemento del filtro.

2.Pivotes de la Palanca de la Dirección–Lubriquelos con grasa de base de litio para usomúltiple (2 sitios).

3. *Correa de transmisión. Comprobar si está desgastada o deteriorads. Ajustar si es necesario. *Inspeccione la nueva correa después de transcurridas las primaras 50 horas de funcionamento. Ajustar si es necesario.

4. Transmisión (500 solamente)– Engrasar acoplamiento universal de la transmisión (modelo 500’s solamente). Ver tipo de grasa en el Manual de Utilización y de Mantenimiento.

5.Sistema hidráulico/hidrostatico–Reemplazar el tapón respiradero del depósito hidráulico y cambiar el elemento del filtro. (853–reemplazar 2 elementos de filtro). Nota: El elemento filtrante deve ser cambiado antes si el indicador de la transmisión permanece encendido mas de 5 minutos despues de que el fluido hidráulico haya alcanzado su temperatura de trabajo.

CADA 1000 HORAS (O CADA 12 MESES)

1.Depósito hidráulico–Reemplazar el aceite. Véase tipo de aceite en el Manual de Utilización y de Mantenimiento.

2.Filtro de purge de los motores hidráulicos–Limpiar o cambiar si existen.

3.Cárter de la cadena– Vaciar y reemplazar el aceite. Véase tipo de aceite en el Manual de Utilización y de Mantenimiento.

4.Cárter de engranajes del ventilador–Comprobar el nivel. Véase tipo de aceite en el Manual deUtilización y de Mantenimiento.

5.BICS–Comprobar el mando auxiliary de derivaciónde los brazos de elevación.

PROGRAMME D’ENTRETIEN (FRENCH)

TOUTES LES 10 HEURES

1.Huile moteur–Contrôler le niveau–Nepas dépasser le niveau (consulter le Manuel de l’Opérateur et d’Entretien pour l’huile recommandée).

2. Filtre à air du moteur–Contrôler la jauge et/ou l’affichage. Entretenir uniquement si nécessaire.

3.Circuit de refriudussenebt du moteur–Nettoyer les débris du refroidisseur d’huile, du radiateur et des grilles. Contrôler à froid le niveau de liquid de refroidissement et rajouter si nécessaire un mélange d’éthylène–glycol/eau à 53/47.

4.Bras de levage de la chargeuses, vérins, pivots etcale du Bob–Tach: lubrifier avec de la graisse tous usages à base de lithium (12 points).

5.Circuit d’air du moteur–Rechercher les fuites et les éléments endommagés.

6.Généralités–Rechercher les pièces desserrés ou brisées, voir si la ceinture de sécurité est endommagée de même que la cabine de l’opérateur, contrôler le fonctionnement des instruments, rechercher les écrous de roue desserrés, les fuites d’huile, etc... Vérifier l’arceau de sécurité et réparer ou remplacer selon besoin avant d’utiliser la chargeuse.

7.Ceinture de sécurité/Verrouillages de barre de siège et de commandes–Fonction de vérification. Réparer ou remplacer selon les besoins. Nettoyer la saleté et les débris.

8.Filtre d’alimentation–Vidanger l’eau de condensation (moteur diesel uniquement).

9.BICS–Vérifiez le fontionnement. Nettoyez la saleté, les débris ou les objets se trouvant sous ou derrièr e le siège selon le besoin.

10.Pneus–Vérifiez la pression de gonflage. Gonflez le s pneus à la pression MAXIMUM indiquée sur la paro i latérale des pneus.

Toutes Les 50 Heures

1.Huile hydraulique–Vérifier le niveau d’huile. Consulter le Manuel de l’Opérateur et d’Entretien pour l’huile.

2.Carter de chaînes–Vérifier le niveau. Consulter l e Manuel de l’Opérateur et d’Entretien pour l’huile.

3.Batterie–Contrôler l’état de la batterie.

4.Commandes et freins–Contrôler le fontionnement et régler si nécessaire.

5.Huile moteur (série 450 uniquement)–Vidanger à chaud. Consulter le Manuel de l’Opérateur e t d’Entretien.

Toutes Les 100 Heures

1.Silencieux para–étincelles–Vider la chambre à étincelles.

2. Circuit d’allumage–Si on utilise de carburant au plomb , vérifier les bougies et l’allumage. Si on utilise d u carburant sans plomb, effectuer l’entretien uniquement selon besoin afin de maintenir de bonnes performances au démarrage et un fonctionnement régulier (moteu r à esence uniquement).

3.Huile moteur–Vidanger à chaud et changer le filtre Consulter le Manuel de l’Opérateur et d’Entretien (Toutes les 250 heures pour les séries 700 équipée s d’un moteur KUBOTA.)

4.Contrôler tous les entraînements par courroie : hydrostatique, pomps á eau, alternateur et ventilateu r; vérifier l’état et la tension des courroies. Régler o u remplacer selon besoin.

5.Circuit hydraulique/hydrostatique (séries 400 et 50 0 uniquement)–Reemplacer l’élément du filtre. Remarque: L’élémentde filtre doit être remplacer plus tôt si l e signal d’avertissement pour la transmission rest e allumé plus de 5 minutes après que l’huile ne soit à temperáture.

TOUTES LES 250 HEURES (OU TOUS LES 12 MOIS)

1.Filtre d’alimentation final–Remplacer l’élément d u filtre.

2.Pivots des leviers de direction–Lubrifier avec de l a graisse tous usages à base de lithium (2 points).

3.Courroie de transmission–Vérifier et tendre s i nécessaire. Vérifier la courroie de remplacement après 50 heures d’utilisation et régler si nécessaire

4.Transmission (série 500 uniquement)–Graisser le cardan. Consulter le Manuel de l’Opérateur et d’Entretien.

5.Circuit hydraulique/hydrostatique–Remplacer l e bouchon de reniflard du réservoir hydraulique e t remplacer l’élément de filtre (853–remplacer deux (2) éléments de filtre). Remarque: L’élément de filtre doit être remplacé plus tôt si le signal d’avertissement de transmission reste allumé plus de 5 minutes aprèsque le liquide hydraulicque soit à température.

TOUTES LES 1000 HEURES (OU TOUS LES 12 MOIS)

1.Réservoir hydraulique–Remplacer l’huile. Consulte r le Manuel d’Opération et d’Entretien pour l’huil e recommandée.

2.Filtre de drain de moteurs de transmission–Nettoyer ou remplacer si existant.

3.Carter de chaînes–Vidanger l’huile et la remplacer. Consulter le Manuel de l’Opérateur et d’Entretien pou r l’huile recommandée.

4.Réducteur du ventilateur–Contrôler le niveau d’huile. Consulter le Manuel de l’Opérateur et d’entretien pou r l’huile recommandée.

5.BICS–Vérifier le fonctionnement de la vanne d e descente du bras de levage.

ADVERTENCIA (SPANISH)

EVITE HERIDAS O LA MUERTE

NO USE NUNCA EL CARGADOR SIN LEER LAS INSTRUCCIONES.

LEA EL MANUAL DEL OPERATIO, EL MANUAL DE SERVICIO Y LA GIA DEL OPERARIO.

NO VIAJE O DE LA VUELTA CON LOS BRAZOS DE ELEVACION ARRIBA.

CARGUE, DESCARGUE Y DE LA VUELTA ESTANDO EN UN SITIO PLANO Y NIVELADO.

NO EXCEDA LA CAPACIDAD NOMINAL DE FUNCIONAMIENTO (VEA EL AVISO EN EL CARGADOR).

USE LA BARRA DEL ASIENTO. ASEGURESE BIEN EL CINTURON DE SEGURIDAD.

NUNCA MODIFIQUE EL EQUIPO NI USE ADITAMENTOS QUE NO ESTEN APROBADOS POR LA COMPAÑIA BOBCAT.

MANTENGA LOS PIES EN LOS PEDALES.

EN LA PENDIENTES, MANTENGA EL EXTREMO PESADO DE CARGADOR EN POSICION ASCENDENTE.

ANTES DE BAJARSE DEL CARGADOR

1.BAJE LOS BRAZOS DE ELEVACION. COLOQUE EL ADITAMENTO BEIN EN EL SUELO.

2.PARE EL MOTOR.

3.PONGA EL FRENO.

4.LEVANTE LA BARRA DEL ASIENTO. MUEVA LOS PEDALES HASTA QUE AMBOS SE TRABEN.

ATTENTION (FRENCH)

EVITER LES BLESSURES OU LA MORT

NE JAMAIS SE SERVIR DE LA CHARGEUSE SANS INSTRUCTIONS.

LIRE LE MANUEL DE L’OPERATEUR EL D’ENTRETIEN AINSI QUE LE GUIDE D’UTILISATION.

NE PAS SE DEPLACER NI VIRER AVEC LE BRAS RELEVES. CHARGER, DECHARGER ET VIRER SUR UN SOL PLAT ET HORIZONTAL.

NE PAS DEPASSER LE CAPACITE NOMINALE (CONSULTER L’AUTOCOLLANT APPOSE SUR LA CARGEUSE).

UTILISER L’ARCEAU DE SECURITE. ATTACHER SOIGNEUSEMENT LA CEINTURE DE SECURITE.

NE JAMAIS MODIFIER L’EQUIPEMENT NI SE SERVIR D’ACCESSOIRES QUE NE SONT PAS APPROUVES PAR BOBCAT.

MAINTENIR LES PIEDS SUR LES PEDALES.

DANS LES PENTES, TOUJOURS MAINTENIR LA PARTIE LA PLUS LOURDE DE LA CHARGEUSE VERS LE HAUT.

POUR QUITTER LA CHARGEUSE:

1.ABAISSER LES BRAS DE LEVAGE. POSER L’EQUIPEMENT A PLATE SUR LE SOL .

2.ARRETER LE MOTEUR.

3.ENCLENCHER LE FREIN DE STATIONNEMENT.

4.RELEVER L’ARCEAU DE SECURITE. DEPLACER LES PEDALES JUSQU’A CE QU’ELLES SOIENTE TOUTES DEUX VERROILLEES.

ADVERTENCIA (SPANISH)

EVITE HERIDAS O LA MUERTE

LLEVE LA CARGA EN POSICION BAJA

EL NO OBEDECER ESTA ADVERTENCIA PUEDE CAUSAR LADEAMIENTO O VUELCOS O PERDIDAD DE LA CARGA Y DE LA VISIBILIDAD.

AVERTISSEMENT (FRENCH)

EVITER DES BLESSURES OU LA MORT

TENIR LA CHARGE VERS LE BAS.

LE NON RESPECT PEUT ENTRAINER UN BASCULEMENT OU UN RENVERSEMENT DE LA MACHINE, UNE PERTE DE LA CHARGE OU DE VISIBILITE.

PELIGRO (SPANISH)

EVITE LA MUERTE

• MANTENGASE RETIRADO DE ESTA AREA CUANDO LOS BRAZOS DE ELEVACION ESTAN ELEVADOS, A MENOS QUE ESTEN TRABADOS POW EL TOPE.

• EL MOVER EL PIE DEL PEDAL O FALLA DE UNA PIEZA PUEDEN CAUSAR LA CAIDA DE LOSBRAZOS DE ELEVACION.

DANGER (FRENCH)

EVITER LA MORT

• EVITER CETTER ZONE LORSQUE LES BRAS D E LEVAGE RELEVÉS NE SONT PAS ASSURÉS PAR DES ARRETS DE BRAS DE LEVAGE.

• UNE PEDALE ACTIONNÉE OU UNE PICE DEFECTUEUSE. PEUT PROVOQUER L’ABAISSEMENT DES BRAS DE LEVAGE.

ADVERTENCIA (SPANISH)

EL CILINDRO CONTIENE GAS BAJO ALTA PRESION. EL ABNRIR EL CILINDRO PUEDE SOLTAR LA VARILLA Y CAUSAR HERIDAS O LA MUERTE.

AVERTISSEMENT (FRENCH)

LES VERINS RENFERMENT UN GAZ SOUS PRESSION. NE JAMAIS OUVRIR UN VERIN CAR LA TIGE RISQUE DE S’ECHAPPER BRUTALEMENT ET DE CAUSER DES BLESSURES OU MEME LA MORT.

PELIGRO (SPANISH)

EVITE LA MUERTE

• EL FORZAR EL IMPLEMENTO CONTRA EL SUELO HACE QUE LA RUEDDAS DELANTERAS SE ELEVEN

• NUNCA SE META DEBAJO NI ALCANCE NADA DEBAJO DE LOS BRAZOS DE ELEVACION O DEL CILINDRO DE ELEVACION SIN QUE ESTE INSLADO U N TOPE APROBADO EN LOS BRAZOS DE ELEVACION

DANGER (FRENCH)

EVITER LA MORT

• L’ACCESSOIRE PEUT ETRE APPUYE CONTRE LE SOL ET SOULEVER LES ROUES AVANT.

• NE JAMAIS ALLER SOUS NI METTRE LES MAINS SOUS LES BRAS OU LE VERIN DE LEVAGE SANS QU’UN ARRET DE BRAS DE LEVAGE APPROUVE SOIT INSTALLE.

PELIGRO (SPANISH)

EVITE LA MUERTE

• La desconexión o el aflojamiento de cualquier tubería, manguera, conector, componente hidráulico o la falla de una parte puede ocasionar la caída de los brazos de elevación.

• Manténgase alejado del área cuando los brazos de elevación se encuentren elevados, a menos que estén sostenidos por medio de un dispositivo de soportepara brazos de elevación aprobado. Cámbielo si está dañado.

DANGER (FRENCH)

ÉVITEZ LA MORT!

• La déconnexion ou le desserrage de toute canalisation, de tout tuyau, de tout raccord et de tout composant de circuit hydraulique, ainsi qu’une défaillance de pièce connexe peuvent provoquer la chute des bras de levage.

• Tenez-vous à l’écart de cette région lorsque les bras de levage sont en position levée, à moins qu’ils ne soient soutenus par un dispositif de support de bras de levage de type approuvé. Remplacez si endommagé.

Performance Specifications

Engine Loader Controls

Drive System

Hydraulic System

Electrical System

Standard Instrument Panel

Deluxe Instrument Panel (Option)

Capacities

Skid Steer Loader Specifications

• Dimensions are given for loader equipped with standard di rt bucket and may vary wi th other bucket types. All dimensions are shown in inches. Respective metric dimensions are in millimeters enclosed by parentheses.

• Where applicable, specifications conform to SAE or ISO standards and are subject to change without notice.

(1814)

Changes of structure or weight distri bution of the loader can cause changes in control and steering response and can cause failure of the loader parts.

Performance Specifications: Rated Operating Capacity (ISO)700 lbs. (318 kg)

Tipping Load (ISO)1421 lbs. (645 kg)

Operating Weight2708 lbs. (1228 kg) (w/ 36 inC/IBkt)

Travel Speed 0–6.2 MPH (0–9,9 km/hr)

Engine:

Make/Model KUBOTA D722–EB

Fuel/Cooling Diesel/Liquid

Horsepower (SAE Net)15.7 HP (11,7 kW)

Number of CylindersThree

Lubrication Pressure System W/Filter

Air Cleaner Dry replaceable cartridge w/safety element

Loader Controls:

Steering Two hand levers

Loader HydraulicsSeparate foot pedals

Auxiliary HydraulicsRight steering lever

Parking Brake Switch in Instrument Panel . . . . . . . . . . (Later Models) or Foot operated pedal (Early Models)

System:

Drive Hydrostatic 4 wheel drive

Infinitely variable tandem hydrostatic piston pumps, driving 2 fully reversing hydrostatic motors

Drive #60 roller chain and sprockets in sealed chaincase with oil lubrication.

Hydraulic System

Engine driven, gear type10.0 GPM (37,9 L/m) @ 3100 RPM System relief @ quick couplers – 2500 PSI (172 BAR)

Electrical System: Alternator 12–Volt, 40 amp, open, neg. ground . . . . . . . . . . . . . Battery 12 Volt – 600 CCA @ 0°F (–18°C)

Instrumentation Panel Hourmeter, temperature gauge, voltmeter and visual warning for engine and hydraulic / hydrostatic functions, fuel gauge on tank.

Capacities: Type:

Fuel Tank 6.5 gals. (24,6 L) Diesel #2 or #1

Eng. Cooling System7 qts. (6,6 L) 53% Propylene Glycol / 47% Water mixture

Engine Oil Change w/Filter 3.4 qts (3,2 L)See Chart Page 42 . . . . . . . . . . . . .

Hyd./Hydros. Res.5.3 qts. (5,0 L) . . . . . .

Hyd./Hydros. System4 gals. (15,1 L) See Below

Chaincase Reservoir3 gals. (11,4 L)

BOBCAT APPROVED ATTACHMENTS & ACCESSORIES

These and other attachments are approved for use on this model Bobcat loader. Do not use unapproved attachments Attachments not manufactured by Bobcat may not be approved.

The versatile Bobcat loader quickly turns into a multi–job machine with a tight–fit attachment hook–up . . . from bucket t o grapple to pallet fork to backhoe and a variety of other attachments. See your Bobcat loader dealer for more details oneth attachments and field accessories.

Increase the versatility of your Bobcat Loader with a variety of bucket styles and sizes. Styles and sizes include:

BUCKET DESCRIPTIONS

36 inch Dirt Bucket

36 inch Dirt Bucket w/6 teeth

44 inch Dirt Bucket

44 inch Dirt Bucket w/7 teeth

44 inch Utility Bucket 48 inch Utility Bucket

Attachments

Backhoe

Bobcat backhoe attachments are designed for the pipeliner, municipal worker or contractor, for high production digging.

Angle Broom

Use it to sweep driveways, sidewalks, parking lots, etc.

Utility Blade

Use it to clear snow or level material.

Hydraulic Breaker

Bob–Tach mounted. Variety of Quick–Change tools available. Low recoil operating cycle.

*SPECIAL APPLICATIONS KIT WHICH INCLUDES A 1/2 INCH LEXAN FRONT DOOR WITH 1/4 INCH TOP AND REAR WINDOWS MUST BE USED WHEN OPERATING THE BOB–TACH MOUNTED HYDRAULIC BREAKER.

Many bucket styles, widths and different capacities are available for a variety of differentapplications.See your Bobcat dealer for the correct bucket for your Bobcat loader and application.

Snowblower

Auger

Clear snow from driveways, sidewalks, etc.

Dig 6”–36” holes with ease and accuracy.

Pallet Fork Tiller

Great for breaking up clumps, mixing compost, tilling.

Dumping Hopper

Saves time by reducing trips to the dumpsite. Mounts like a bucket on your Bobcat loader.

Utility Fork/Grapple

The Bobcat Loader Utility Fork and Grapple is the ideal attachment for handling bundled material, loose straw, and manure.

Landplane

Remove large clumps and rocks as you level and grade.

Move bulky or bagged materials in one load. A ll kinds of farm chores and fertilizer handling; baled o r pallet materials.

Trencher

Versatile trenching ability for utility lines, etc.

Some attachments may not be available from your local dealer.

ADDITIONAL PUBLICATIONS and TRAINING MATERIALS

The following publications and training materials are also available for your Bobcat Loader. You can order them from your Bobcat dealer.

For the latest information on Bobcat products and the Bobcat, visit our website at www.bobcat.com

OPERATOR’S HANDBOOK

6708358

–gives basic operation instruction and safety warnings.

Parts Microfiche

–Up–to–date PARTS information is also available. See your BOBCAT dealer.

OPERATION & MAINTENANCE MANUAL

6901175

–complete instruction on the correct operation and the routine maintenance of the BOBCAT loader.

SKID STEER LOADER OPERATOR TRAINING COURSE

6901726

SKID STEER LOADER SERVICE SAFETY TRAINING COURSE

6900641

Service Manual

SERVICE MANUAL

6901177

–complete maintenance and overhaul instructions for you r BOBCAT loader.

–Introduces operator to step–by–step basics of Skid–Steer loader operation. Also available in Spanish P/N 6724036.

OPERATION

SAFETY VIDEO

6724793

–provides basic safety instructions.

SAFETY MANUAL

6556500

–Introduces Service Technicians to step–by–step basics of proper and safe skid–steer loader maintenance and servicing procedures.

–provides basic safety procedures and warnings for your BOBCAT loader. Also available in Spanish P/N 6724451.
