Removing the LCD Module

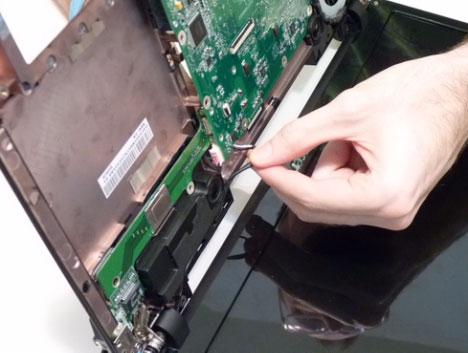

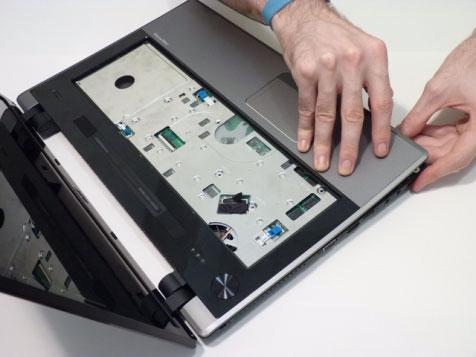

1. See "Removing the Upper Cover" on page 54 2. Pull the WLAN antenna up through the upper cover and free it from the cable channel.

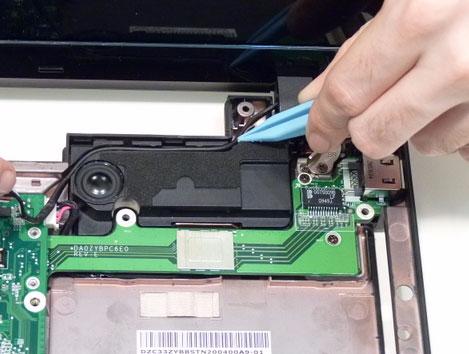

3. Using the pull tab, release the LVDS cable from the connector.

Step

Remove LCD Module

Screw

M2.5*6.0 4

Quantity Screw Type

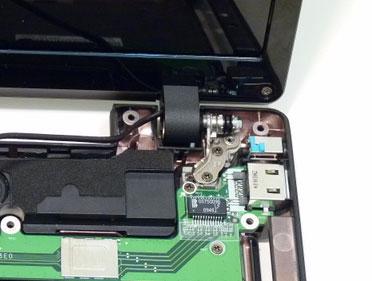

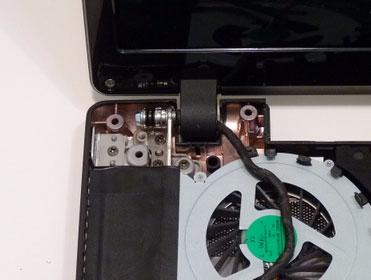

5. Remove the LCD module from the chassis.

CAUTION: Make sure all cables are pulled back and away from the device to avoid damage during removal.
