Removing the WLAN Module

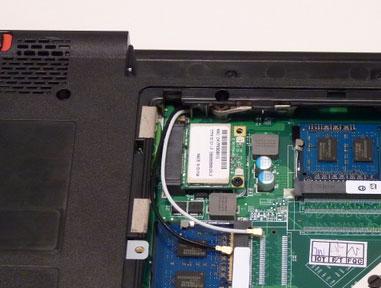

1. See “Removing the Battery Pack” on page 37. 2. See “Removing the Base Door” on page 39. 3. Detach the two (2) cables from the Wireless LAN module. IMPORTANT:Take note of the position of the Main (black) and Auxiliary (white) connectors.

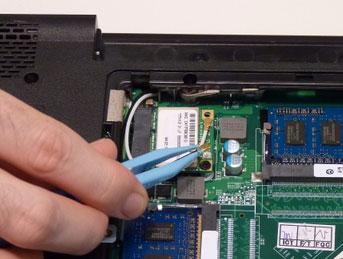

4. Remove the one (1) screw. Ensure the cables are well clear of the module.

Step

WLAN Module Disassembly

Screw Quantity Screw Type

M2.0*3L(BK) 1
