Removing the LCD Brackets and FPC Cable

1. Remove the LCD Panel. See “Removing the LCD Panel” on page 47. 2. Turn the LCD panel over on a clean surface. Remove the adhesive strips securing the LCD cable.

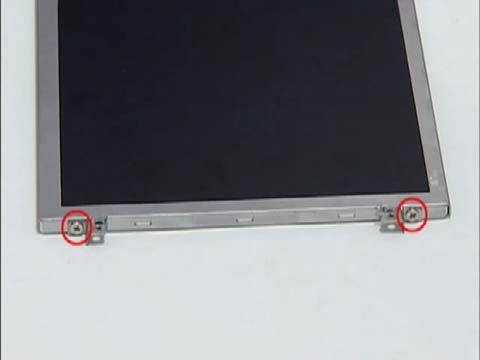

3. Disconnect the LCD cable from its connector as shown.

Step

Size

LCD Brackets M2*3 NL 4

Quantity Screw Type

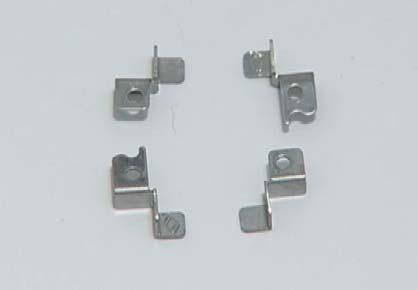

NOTE: The brackets are paired diagonally and marked as shown below.
