Removing the LCD Panel

1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 44. 2. Disconnect the MIC cable. See “Removing the MIC Board” on page 46. 3. Remove the five (5) securing screws from the LCD Module.

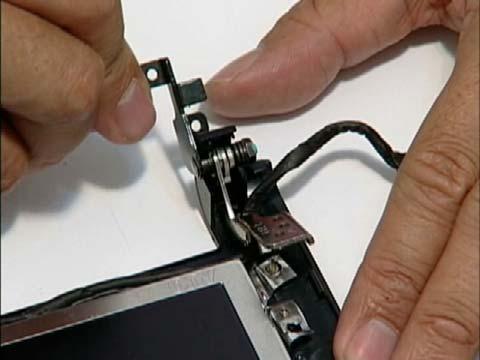

4. Grasp the left hinge and pivot down before pulling up. 5. Remove it from its housing well.

Step

Size

LCD Panel M2*4 (NL) 5

Quantity Screw Type
