Removing the LCD Module

1. Remove the Upper Cover. See “Removing the Upper and Lower Covers” on page 39. 2. Disconnect the LCD cable from its connector

3. Disconnect and remove the antenna cables from the housing well.

NOTE: Main cable is black. The Auxiliary cable is white.

LCD Module M2*5 (NL) 4

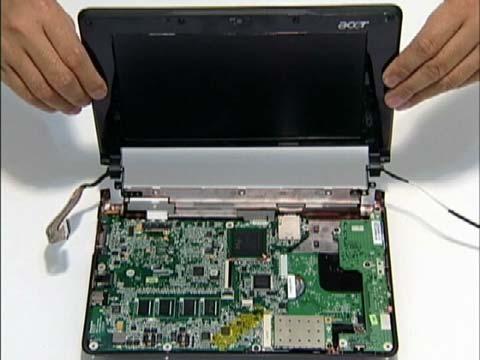

5. Tilt the LCD module so it sits at a 90 degree angle.

IMPORTANT:Ensure all cables are clear of the lower cover before removing the LCD module. 6. Grasp the module by both sides and lift upwards.
