Jack500 RJ45
Top View

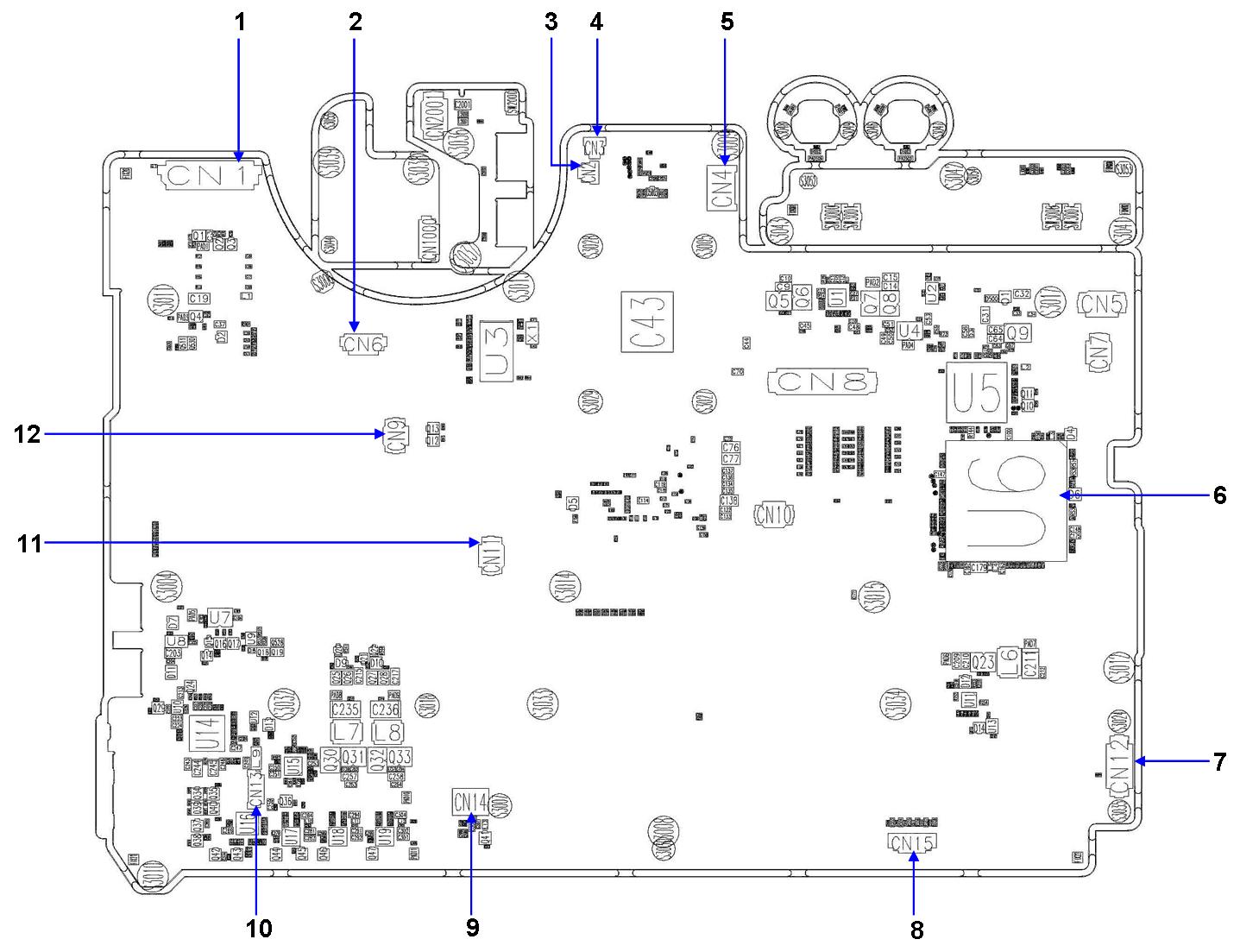

Aspire8930 M/B layout and connector location TOP view
No. Name
Description
1 CN1 LCM Cable CNTR 2 CN6 Power Board FFC CNTR 3 CN2 LED Board Cable CNTR 4 CN3 LED Board Cable CNTR 5 CN4 Power Cable CNTR 6 U6 South Bridge 7 CN12 I/O Board CNTR 8 CN15 Speaker Cable CNTR 9 CN14 MDC CNTR 10 CN13 BT Cable CNTR 11 CN11 Touch Pad FFC CNTR 12 CN9 Media consle Board CNTR
