Replacing the Left Speaker Module

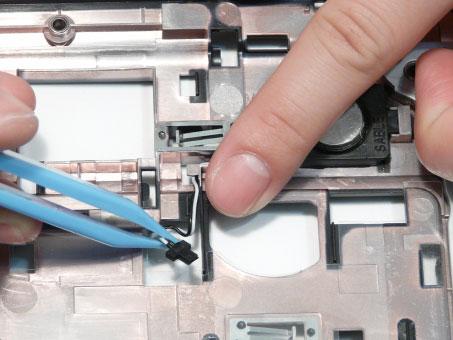

1. Place the module right side first on the Upper

Cover as shown. Ensure that the right side of the module is seated correctly in the securing clip. 2. Replace the single screw to secure the module in place.

3. Run the cable along the cable channel using all available cable clips.

4. Secure the cable in place with adhesive tape. 5. The cable runs as shown when correctly installed.
