Removing the Keyboard

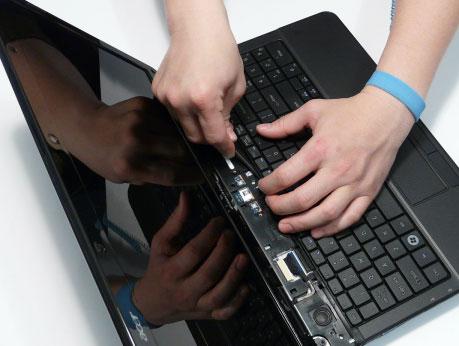

1. See “Removing the Switch Cover” on page 57. 2. Pry up the centre of the Keyboard and rotate it upward away from the Upper Cover.
3. Turn the keyboard over on to the TouchPad area to expose the FFC connector.
4. Open the locking latch and disconnect the FFC from the mainboard.
5. Lift the keyboard clear of the Upper Cover.
