Replacing the Antenna, MIC and Speaker Cables

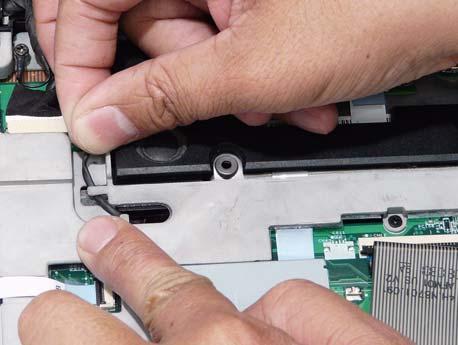

IMPORTANT:Ensure that all cables pass through the Mainboard and are accessible from the underside of lower cover. 1. Insert the cabling through the housing as shown. 2. Ensure that the cabling is tucked in and secured.

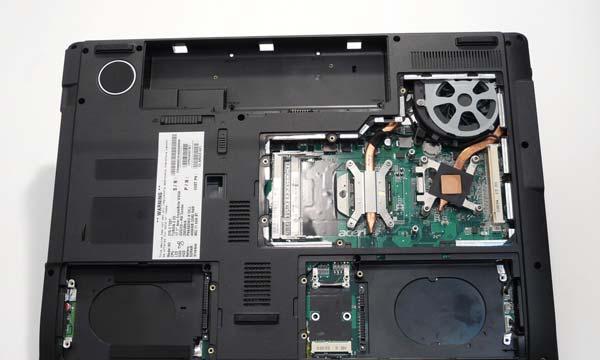

3. Turn the computer on its side, feed cables through to the underside.

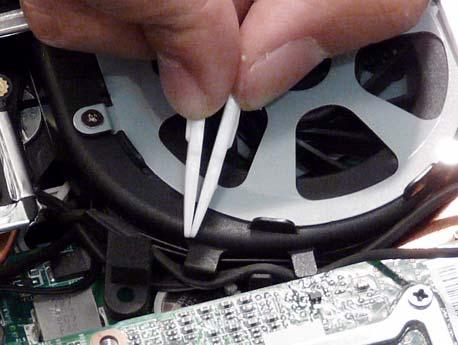

5. Take note of the cabling arrangement. Ensure that the cabling is secured as shown to prevent damage.

6. Connect the MIC and speaker cables.
