Removing the Mainboard

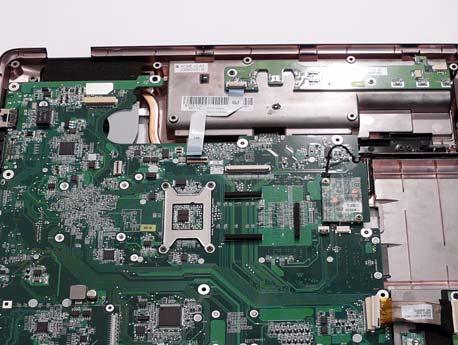

1. Remove the Upper Cover. See “Removing the Upper Cover” on page 70. 2. Disconnect the two cables connected to the motherboard.

3. Remove the securing screw from the Mainboard.

4. Pull the edge of the lower base outward and lift the motherboard up to remove.

Step

Size

Mainboard M2.5*6.5 1

Quantity Screw Type
