Removing the Optical Drive Module

1. Remove the Battery Pack. See “Removing the Battery Pack” on page 48. 2. Loosen the captive screw securing the ODD module and remove the ODD cap.

3. Carefully use a screwdriver to push the locking catch and remove the ODD module.

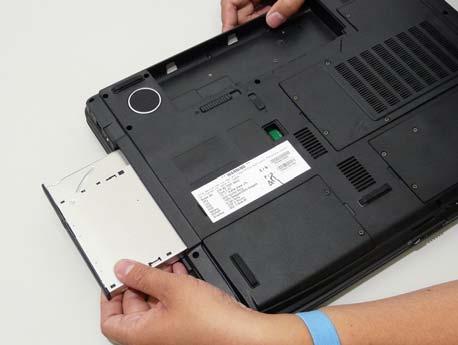

4. Grasp the module and pull out from the main unit.

Step

Size

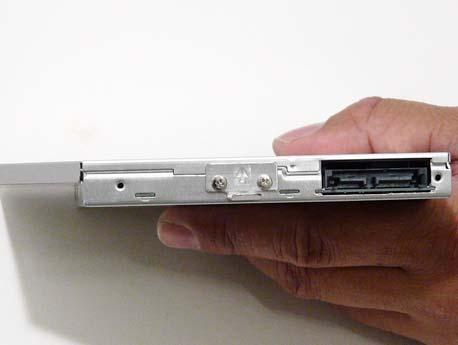

ODD Bracket M2*2.5 2

Quantity Screw Type

6. Insert a pin in the eject hole of the ODD to eject the ODD tray.

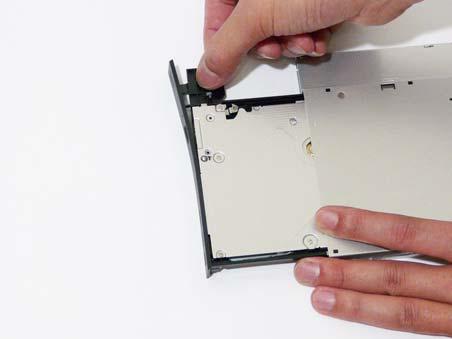

7. Press down on the locking catch to release the ODD cover and remove.
