Removing the WLAN Module

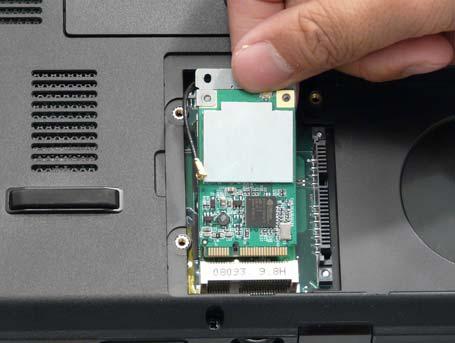

NOTE: Some models come equipped with either a TV Tuner module or a Turbo RAM module. 6. Remove the bracket from the module.

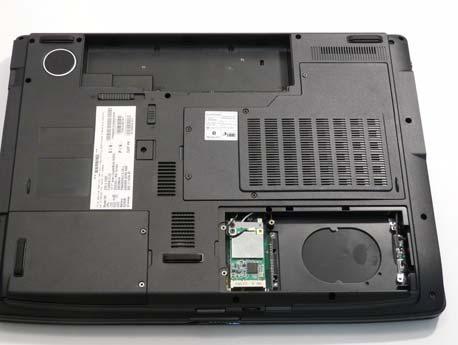

1. Remove the battery. See “Removing the Battery Pack” on page 48. 2. Remove the Tv Tuner module. See “Removing the TV Tuner module” on page 53. 3. Disconnect the antenna cables from the WLAN board.

Step

Size

WLAN Module M2*3 2

Quantity Screw Type

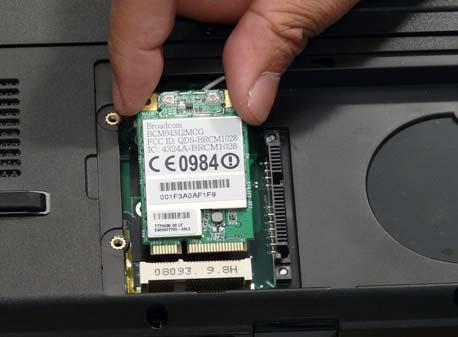

5. Detach the WLAN board from the WLAN socket.
