Replacing the WLAN Module

1. Insert the WLAN board into the WLAN socket. 2. Replace the two screws to secure the module.

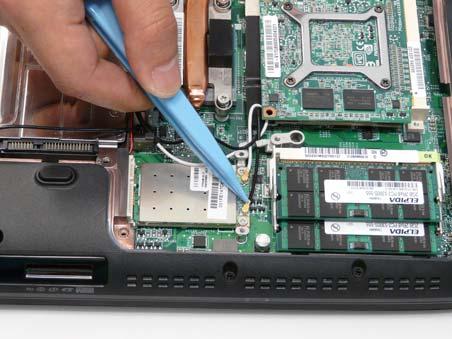

3. Connect the two antenna cables to the module.

NOTE: The White cable goes to the upper terminal and the black cable to the lower terminal. 4. Ensure that the cabling is replaced as shown to avoid trapping when the covers are replaced.
