Removing the Inverter Board

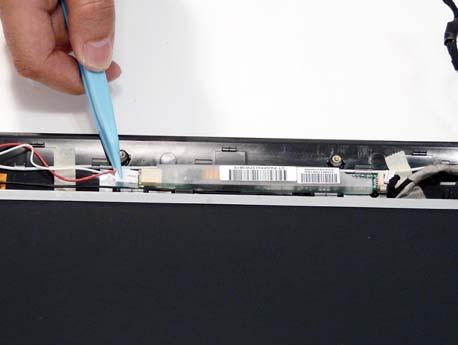

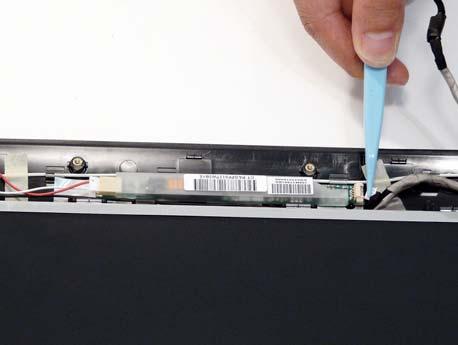

1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 87. 2. Disconnect both cables from the Inverter Board.

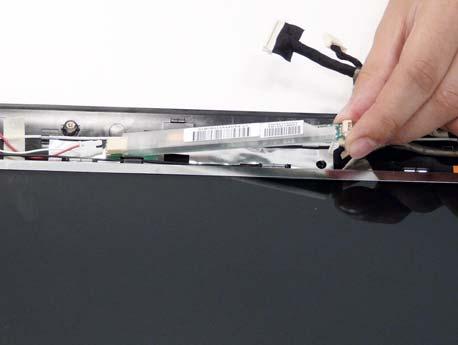

NOTE: If you are having difficulty removing the cables, first lift the Inverter Board from the back cover before disconnecting the cables. 3. Remove the Inverter board from the LCD Module.
