Replacing the Main Hard Disk Drive Module

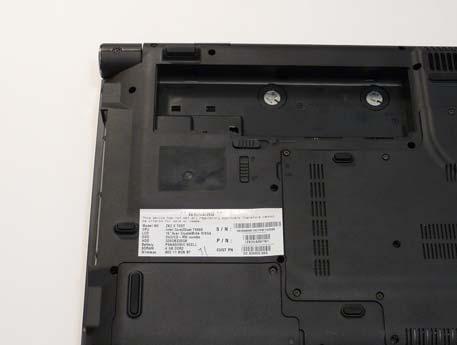

3. Slide the module in to the chassis and press until module is flush with the chassis.

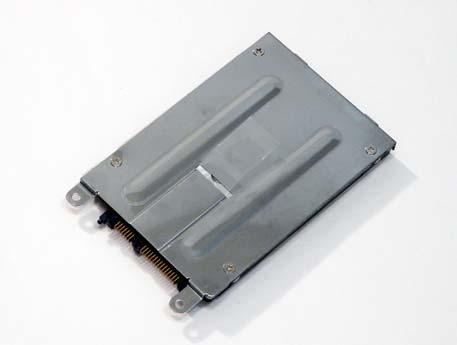

1. Replace the HDD connector. 2. Place the HDD in the HDD carrier.

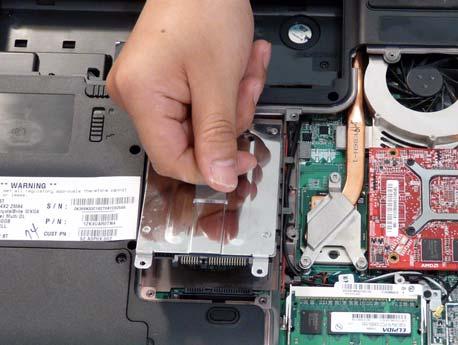

3. Replace the four screws to secure the carrier. 4. Insert the back first and angle the HDD in place. Push down to connect the HDD interface.
