Replacing the Launch Board

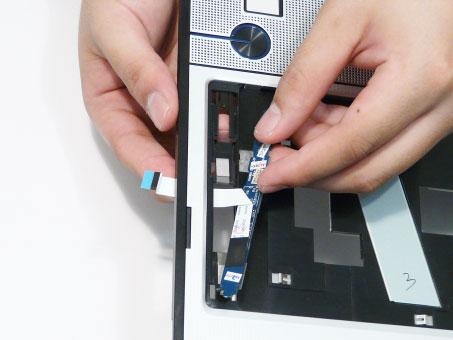

1. Feed the FFC through the penetration in the Upper Cover as shown.

2. Place the Launch Board into the Upper Cover.

3. Press down on the top of the board to engage the securing clips (1) and push the Launch Board in the direction of the arrow (2) to lock the board in place.

1

Securing Clip

2

5. Turn the Upper Cover over and adhere the Launch Board FFC to the upper cover.
