Replacing the ODD Module

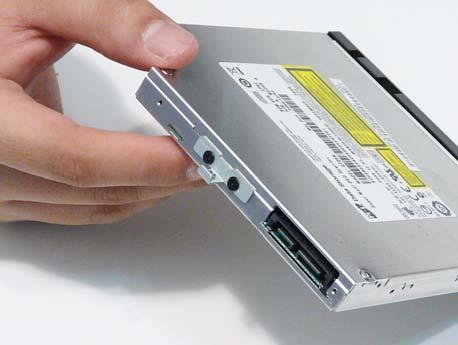

1. With the ODD tray in the eject position, replace the
ODD bezel on the new ODD Module. 2. Secure ODD bracket with two screws.

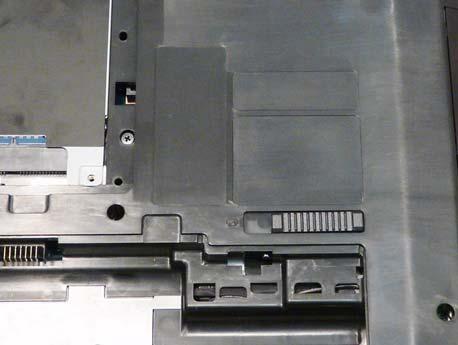

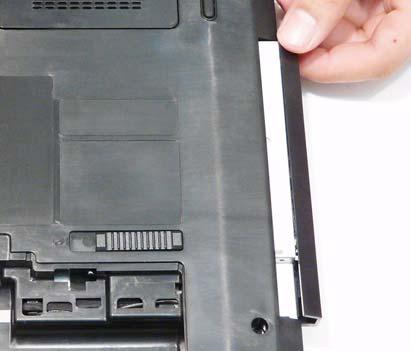

3. Slide the module in to the chassis and press until the module is flush with the chassis. 4. Replace the single screw to secure the Module.
