Replacing the Media Board

1. Insert the FFC into the penetration in the the Upper Cover (1) and place the Media Board into the Upper Cover (2) as shown.

2. Press down on the board so the securing clips engage and push the Media Board in the direction of the arrow (2).

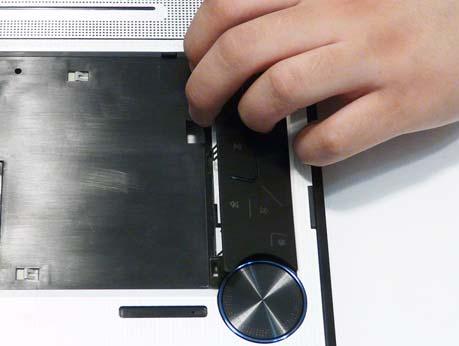

3. Turn the Upper Cover over. Insert the Media Board cover into the Upper Cover as shown; a click indicates the securing clips have engaged.

2

1

1

Securing Clip

2
