Replacing the WLAN Module
1. Insert the WLAN Module into the mini-card socket.

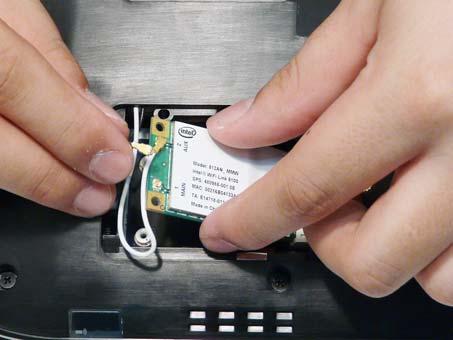

2. Connect the antenna cables to the WLAN Module. IMPORTANT: The black cable attaches to the MAIN terminal and the white cable attaches to the AUX terminal.

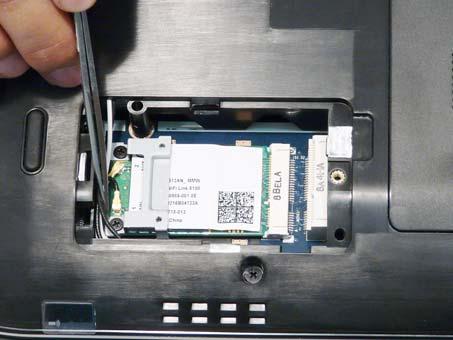

4. Insert the two screws to secure the Mini-Card Bracket and WLAN Module to the Mainboard
Step
Size
WLAN Module M2*3 2
