Removing the Speaker Module

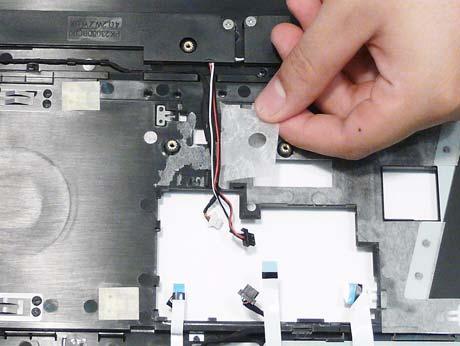

1. See “Removing the Upper Cover” on page 63. 2. Lift the mylar covering to expose the Speaker cable as shown.

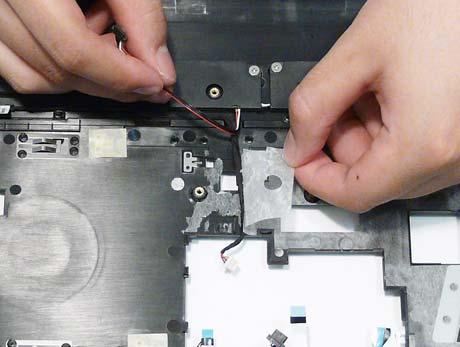

3. Remove the Speaker cable from the cable channel as shown.

4. Remove the four securing screws from the Speaker module.

Step

Size

Speaker Module M2.5*3 4

Quantity Screw Type
