Removing the Saddles

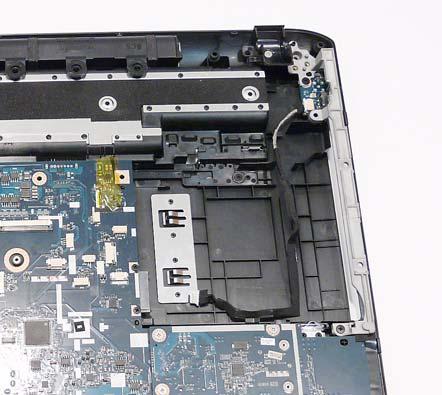

1. See “Removing the Upper Cover” on page 63. 2. Lift the left side Saddle clear of the Lower Cover as shown.

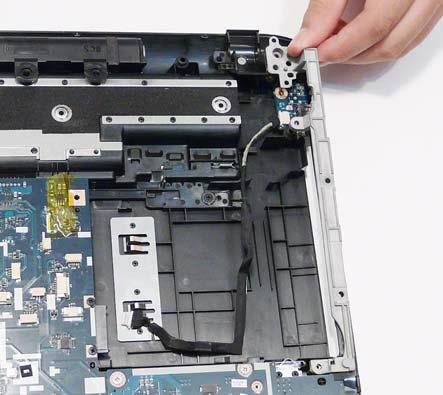

3. Remove the two screw securing the right side Saddle to the Lower Cover.

Step

Size

Right Saddle M2.5*5 2

Quantity Screw Type
