Removing the Launch Board

1. See “Removing the Upper Cover” on page 63. 2. Turn the Upper Cover over and lift the Launch Board FFC to disconnect the adhesive.

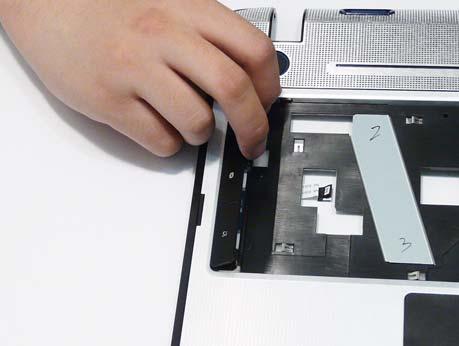

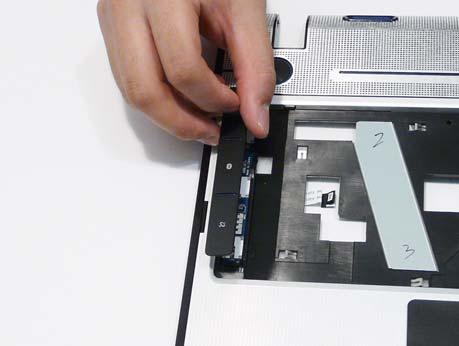

3. Turn the Upper Cover over. Lift the Launch Board cover, left side first, and remove the cover from the Upper

Cover.

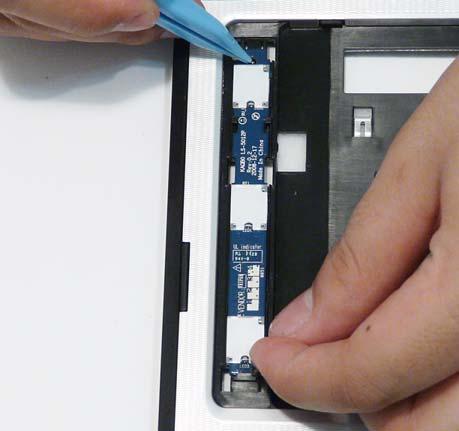

4. Press down the securing latch (1) and push the Launch Board in the direction of the arrow (2) to disengage the securing clips.

1

Securing Clip

2

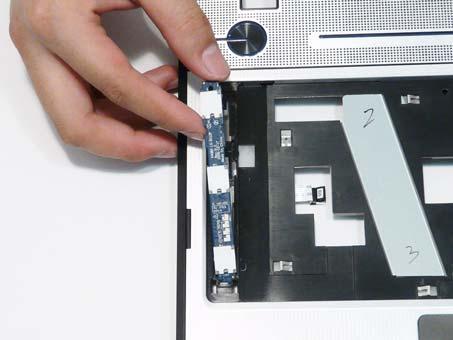

6. Feed the FFC through the Upper Cover to remove the Launch Board
