Removing the Hard Disk Drive Module

1. See “Removing the Lower Covers” on page 51. 2. Use the pull-tab to lift the HDD and disconnect the interface.

3. Lift the hard disk drive module out of the bay.

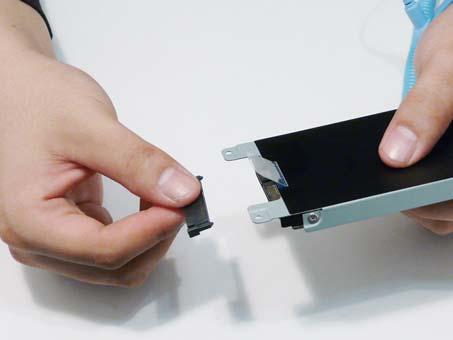

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it. 4. Remove the vertical interface connector as shown.

Step

Size

HDD Carrier M3*3 4

Quantity Screw Type

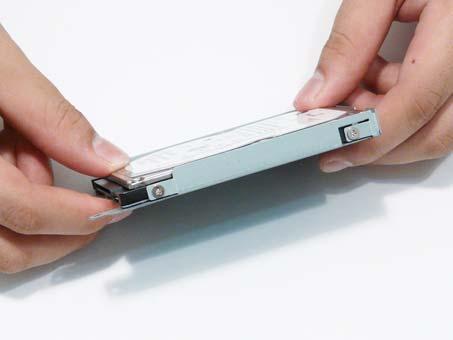

6. Remove the HDD from the carrier.
