DOS Flash Utility

Perform the following steps to use the DOS Flash Utility: IMPORTANT:Use USB KEY, USB HDD, DVD-RW, and HDDs that can boot to DOS mode. 1. Press F2 during boot to enter the Setup Menu. 2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move

USB HDD to position 1.

InsydeH20 Setup Utility Rev. 3.5 Information Advanced Main Boot Security Power Exit

Boot priority order: ItemSpecificHelp

1. IDE0 : ST9250320AS 2. IDE1 : HL-DT-ST DVDRAM GT20N 3. USB FDD : 4. Network Boot : MBA v11.0.3 Slot 0500 5. USB HDD : 6. USB CDROM : Use < > or < > to select a device, then press <F5> to move it down the list, or <F6> to move it up the list. Press <Esc> to escape the menu

F1 ESC Help Exit Select Item Select Menu F5/F6 Enter ChangeValues Select SubMenu F9 F10 SetupDefault SaveandExit

3. Execute the FLASH.BAT batch file to update BIOS.

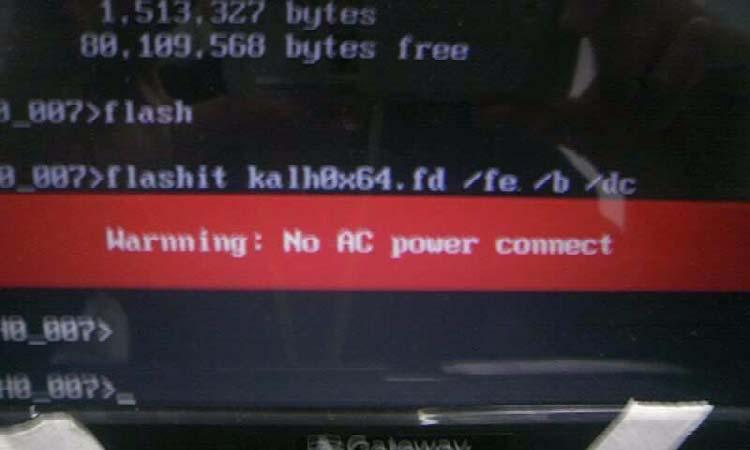

4. In flash BIOS, the message Please do not remove AC Power Source displays. If the AC power is not connected, the following warning displays:
